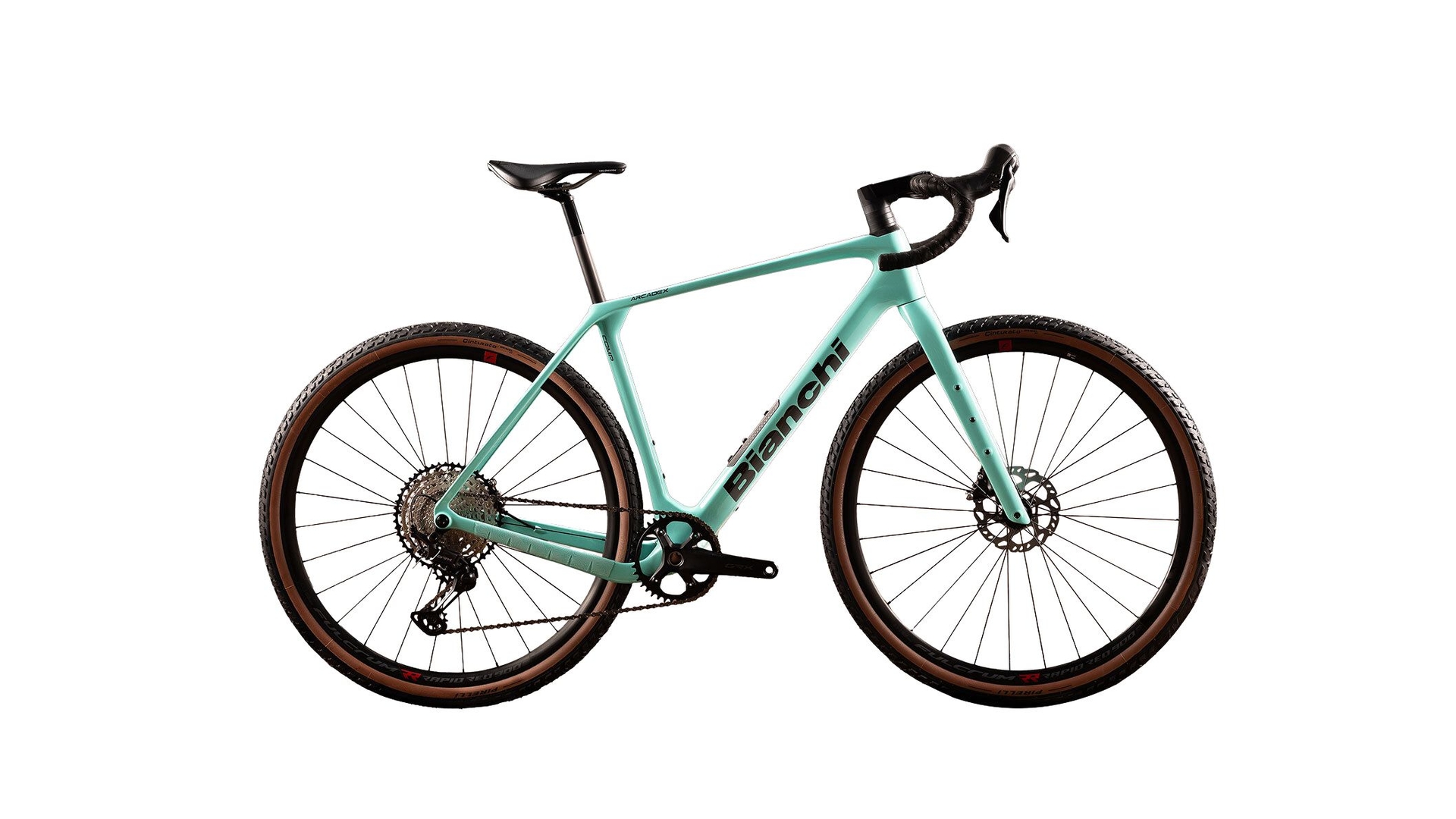

    ARCADEX COMP GRX 610/822 DISC 1X12SP Celeste YTB87Celeste

    ARCADEX COMP GRX 610/822 DISC 1X12SP Celeste YTB87
    Images shown above are indicative only.
    Components and graphical details may differ from the actual model.
    In our showroom

    ARCADEX COMP GRX 610/822 DISC 1X12SP Celeste YTB87Celeste

    We engineered the Arcadex to take you further. Further outside your usual riding locale. Further into the wilderness. Fu…

    Select options to see stock info
    £2,649.00

    Options

    FREE Delivery

    On full-price bikes

    FREE click & collect

    On all orders

    FREE bike assembly

    On all Click & Collect orders

    All major cards accepted

    No card processing fees

    Cycle to Work available

    Contact us for details

    Minimum 12 month warranty

    On all products

    • We engineered the Arcadex to take you further. Further outside your usual riding locale. Further into the wilderness. Further beyond your comfort zone. We wanted to design a gravel bike capable of supporting you on the most adventurous rides. That meant devising new ways to enhance its capabilities, innovative features to augment exploration. The result is the new Arcadex, an intrepid, rugged adventure machine that will take you further than ever. There are two trends emerging in gravel, high-speed performance and advanced exploration. Bianchi’s comprehensive gravel offer comprises the Impulso range for going fast and for competition, and the Arcadex family for heading off the beaten path.

    • FRAME
      Arcadex Comp Disc Brake Specification: Flat Mount 140/160 Bottom Braket Standard: PressFit 86.5 X Ø41 Rear Axle: thru12 OLD (Over-Locknut-Dimension): 142 mm Front Derailleur:Non Compatible Rear Derailleur: SRAM UDH Hanger type Max Chainring Compatibility:
      FORK
      Bianchi Arcadex Fork Disc Brake Specification: Flat Mount 140/160 Front Axle: thru12 OLD (Over-Locknut-Dimension): 100 mm Tire Clearance: ETRTO 622-42mm Steer tube Diameter: 1 1/8"" Material: Epoxy - SM Carbon Fiber Composite
      HEADSET
      Bianchi Custom Acros ICR (Internal Cable Rounting) Spacers:5 mm x1, 10mm x3 Headtube Cover: Bianchi Costum Compresion Ring: 1.125 Inch Top Bearing: Angular contact Bearing 42x52x7 + seal Bottom Bearing: Angular contact Bearing 40x52x7 + seal
      SHIFTERS
      Shimano GRX 610 ST/BL-RX610
      REAR DERAILLEUR
      Shimano GRX 822 RD-RX822, SGS Maximum Cassette Sprocket 51T
      CRANKSET
      Shimano GRX 610 FC-RX610-1, 40T Crank Length
      BOTTOM BRACKET
      Shimano SM-BB72-41B, press fit
      CHAIN
      Shimano CN-M7100
      CASSETTE
      Shimano CS-M7100-12 speed, 11-51T Driver body Interface
      BRAKES
      Shimano Hydraulic Brake, BR-RX400
      ROTOR
      Shimano SM-RT70 IceTech Hub Interface
      WHEELS
      Fulcrum RapidRed 900 2-Way Fit Ready (for clincher and tubeless ready) Rim Diameter
      TIRE
      Pirelli Cinturato™ GRAVEL M Classic, 45-622 tan sidewall
      STEM
      Velomann AICR Alloy Rise
      HANDLEBAR
      Velomann Gravel ICR Alloy Flare
      GRIPS / EXTENSIONS
      Bianchi Hexagon tape 2.5mm thickness, Full black
      SEATPOST
      Velomann Carbon UD SeatPost O.D
      SADDLE
      Velomann MITORA 149 H2 cover
