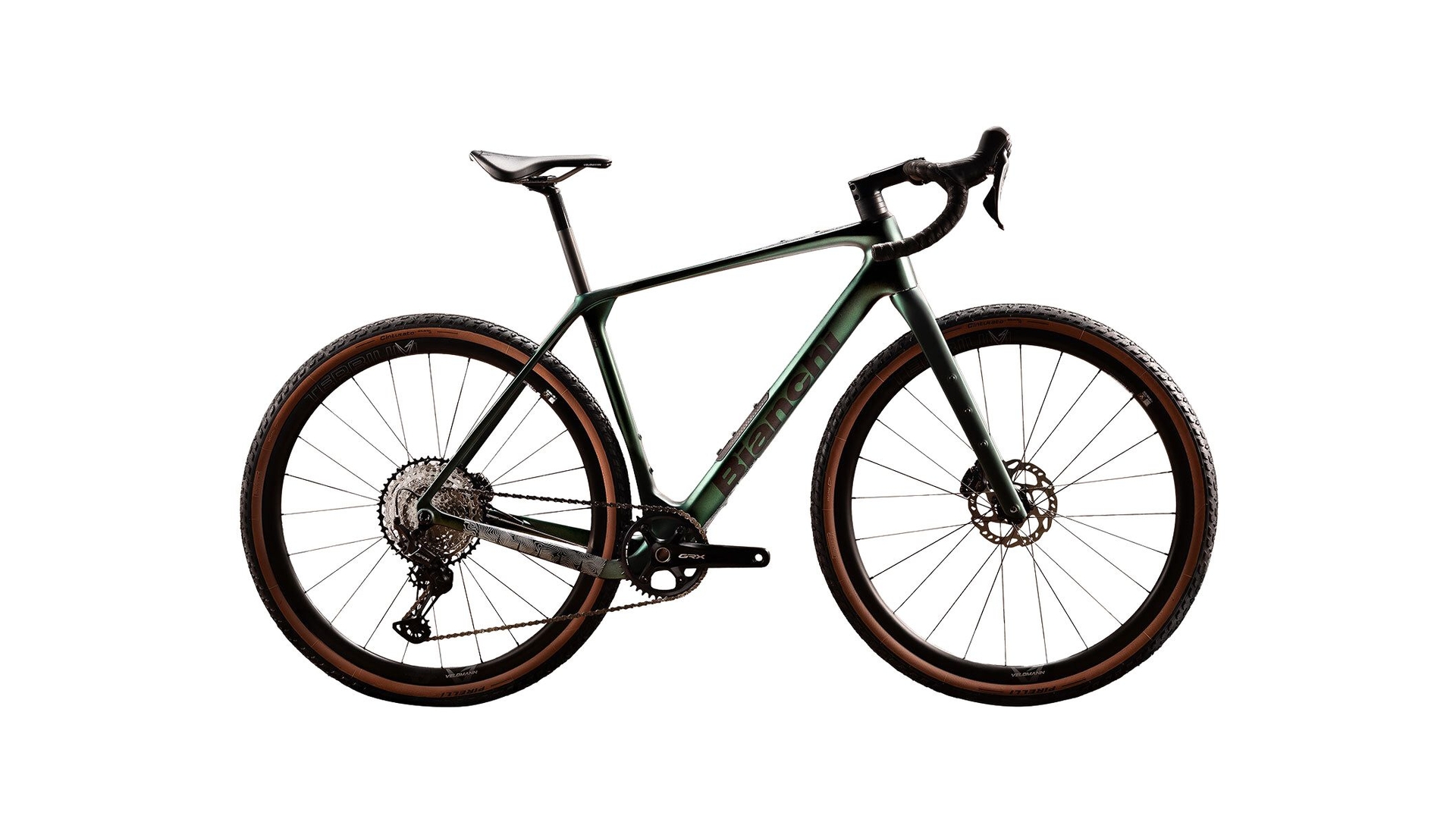

    ARCADEX PRO APEX/GX AXS DISC 1X12SP Green YTB82Green

    ARCADEX PRO APEX/GX AXS DISC 1X12SP Green YTB82
    Images shown above are indicative only.
    Components and graphical details may differ from the actual model.

    ARCADEX PRO APEX/GX AXS DISC 1X12SP Green YTB82Green

    We engineered the Arcadex to take you further. Further outside your usual riding locale. Further into the wilderness. Fu…

    Select options to see stock info
    £4,490.00

    Options

    FREE Delivery

    On full-price bikes

    FREE click & collect

    On all orders

    FREE bike assembly

    On all Click & Collect orders

    All major cards accepted

    No card processing fees

    Cycle to Work available

    Contact us for details

    Minimum 12 month warranty

    On all products

    • We engineered the Arcadex to take you further. Further outside your usual riding locale. Further into the wilderness. Further beyond your comfort zone. We wanted to design a gravel bike capable of supporting you on the most adventurous rides. That meant devising new ways to enhance its capabilities, innovative features to augment exploration. The result is the new Arcadex, an intrepid, rugged adventure machine that will take you further than ever. There are two trends emerging in gravel, high-speed performance and advanced exploration. Bianchi’s comprehensive gravel offer comprises the Impulso range for going fast and for competition, and the Arcadex family for heading off the beaten path.

    • Frame
      Arcadex PRO Disc Brake Specification: Flat Mount 140/160 Bottom Braket Standard: PressFit 86.5 X Ø41 Rear Axle: thru12 OLD (Over-Locknut-Dimension): 142 mm Front Derailleur:Non Compatible Rear Derailleur: SRAM UDH Hanger type Max Chainring Compatibility:
      Fork
      Suspension Fork: RockShox Rudy XPLR Travel: 30 mm Disc Brake Specification: Direct Flat Mount 160/180 Front Axle: thru12 OLD (Over-Locknut-Dimension): 100 mm Tire Clearance: ETRTO 622-50mm Steer tube Diameter: Tapered 1 1/8"" to 1.5"" Fork Rake: 51 mm
      Headset
      Bianchi Custom Acros ICR (Internal Cable Rounting) Spacers:5 mm x1, 10mm x3 Headtube Cover: Bianchi Costum Compresion Ring: 1.125 Inch Top Bearing: Angular contact Bearing 42x52x7 + seal Bottom Bearing: Angular contact Bearing 40x52x7 + seal Base Plate wi
      Shifters
      Sram Apex AXS HRD Shift System
      Rear derailleur
      Sram GX Eagle Transmission (T-type AXS)
      Crankset
      Sram Rival 1 WIDE 40T Crank Length: 170mm-XS(47)-SM(51), 172.5mm-MD(55)-LG(58), 175mm-XL(61)
      Bottom bracket
      Sram DUB PressFit Road Wide 86.5 X Ø41
      Chain
      Sram GX Eagle Transmission Flattop
      Cassette
      Sram GX Eagle Transmission, XS 1272 T-Type, 10-52T Driver Body Interface: XD
      Brakes
      Sram APEX Pad Type: Steel-Backed Organic
      Rotor
      Sram CenterLine Rotor Hub Interface: Centerlock Rotor Diameter: 160 mm (front&Rear)
      Wheels
      Velomann Terbium clincher and tubeless ready Rim Diameter: 700C Material: Carbon Rim Height: 30 mm Inner Wigth Channel: 25 mm
      Tire
      Pirelli Cinturato™ GRAVEL M Classic, 45-622 tan sidewall
      Stem
      Velomann AICR Alloy Rise: -2° Steerer Diameter: 1-1/8"" (28.6mm) HB interface Diameter: 1-1/4"" (31.8mm) Stem Lengths: 80mm - XS(47), 90mm - SM(51), 100mm-MD(55), 110mm-LG(58),120m -XL(61)
      Handlebar
      Velomann Gravel ICR Alloy Flare: 16° Drop: 130mm Reach 70mm Interface Diameter: 1 1/4"" (31.8mm) HandleBar Widths: 400 - SX(47) SM(51), 420 - MD(55) LG(58), 440 -XL(61)
      Grips extensions
      Bianchi Hexagon tape 2.5mm thickness, Full black
      Seatpost
      Velomann Carbon UD SeatPost O.D: Ø27.2 mm Seatpost lengths: 300mm-SX(47), 350mm- SM(51) MD(55), LG(58) XL(61)
      Saddle
      Velomann MITORA 149 H1 cover: soft touch, padding: foam, shell: nylon carbon rails: Aisi Steel lenght: 250mm width: 149mm weight: 230g ± 2
