Scancode
|
1140260-72- |
Product description
|

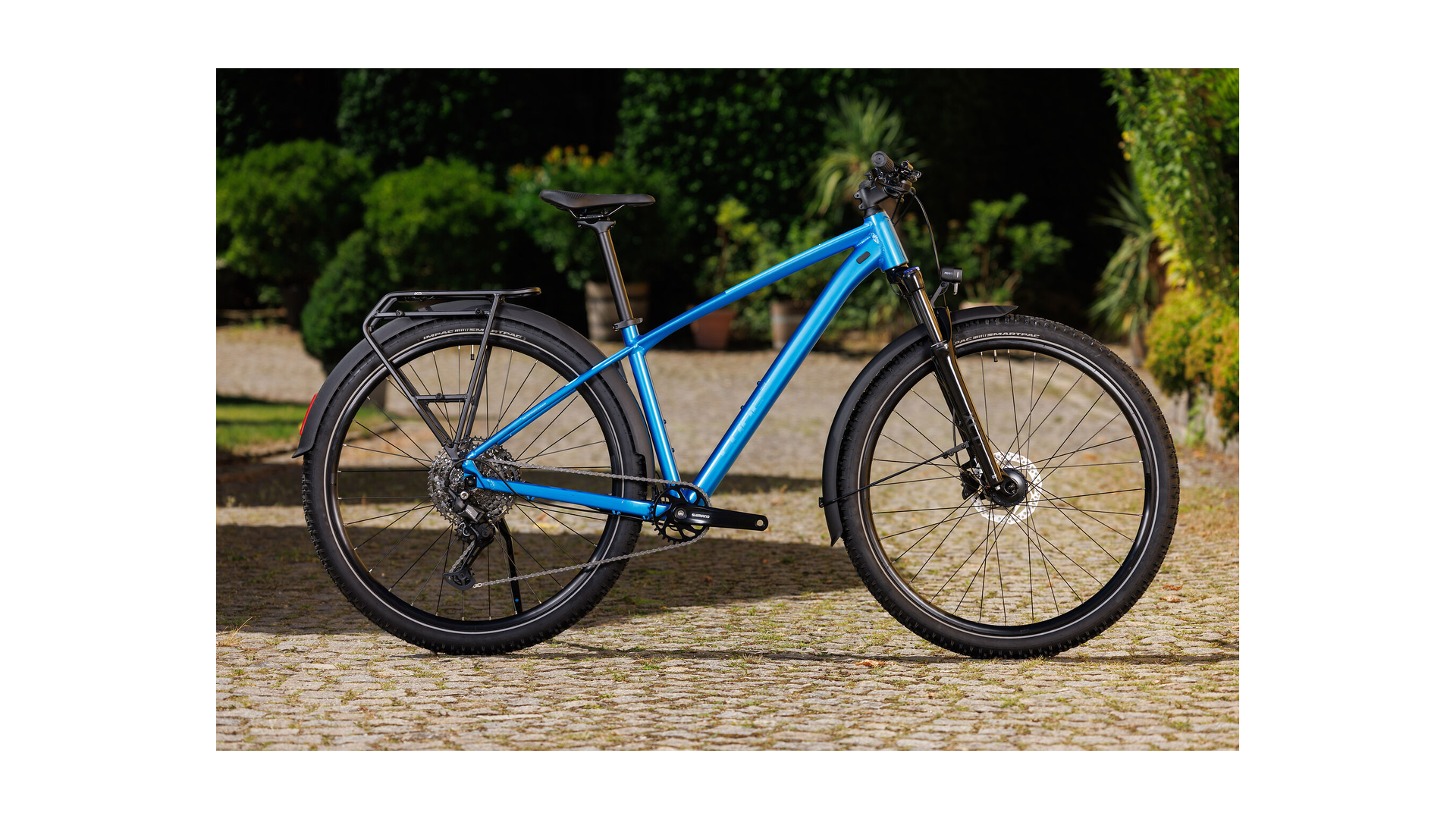

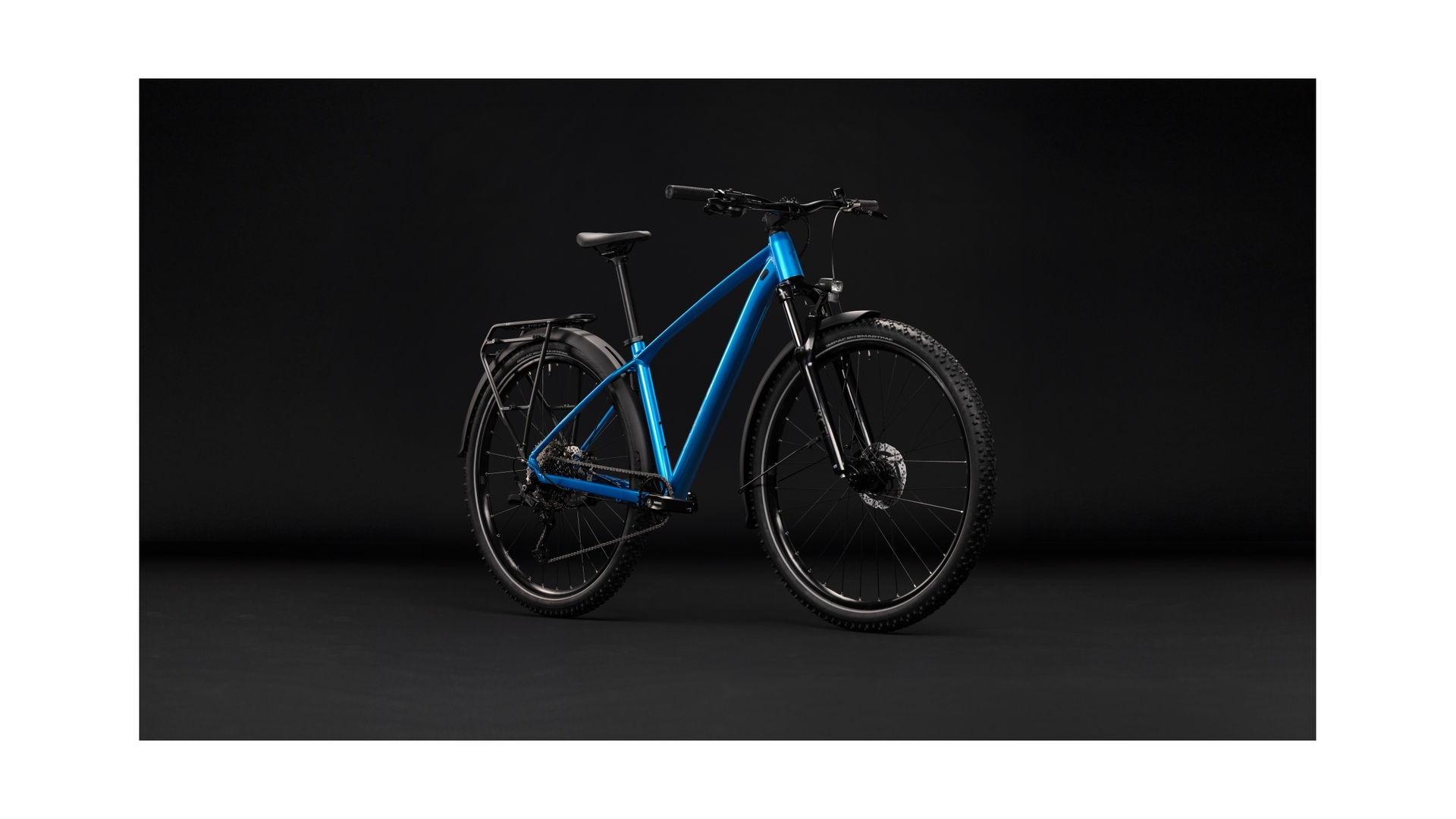

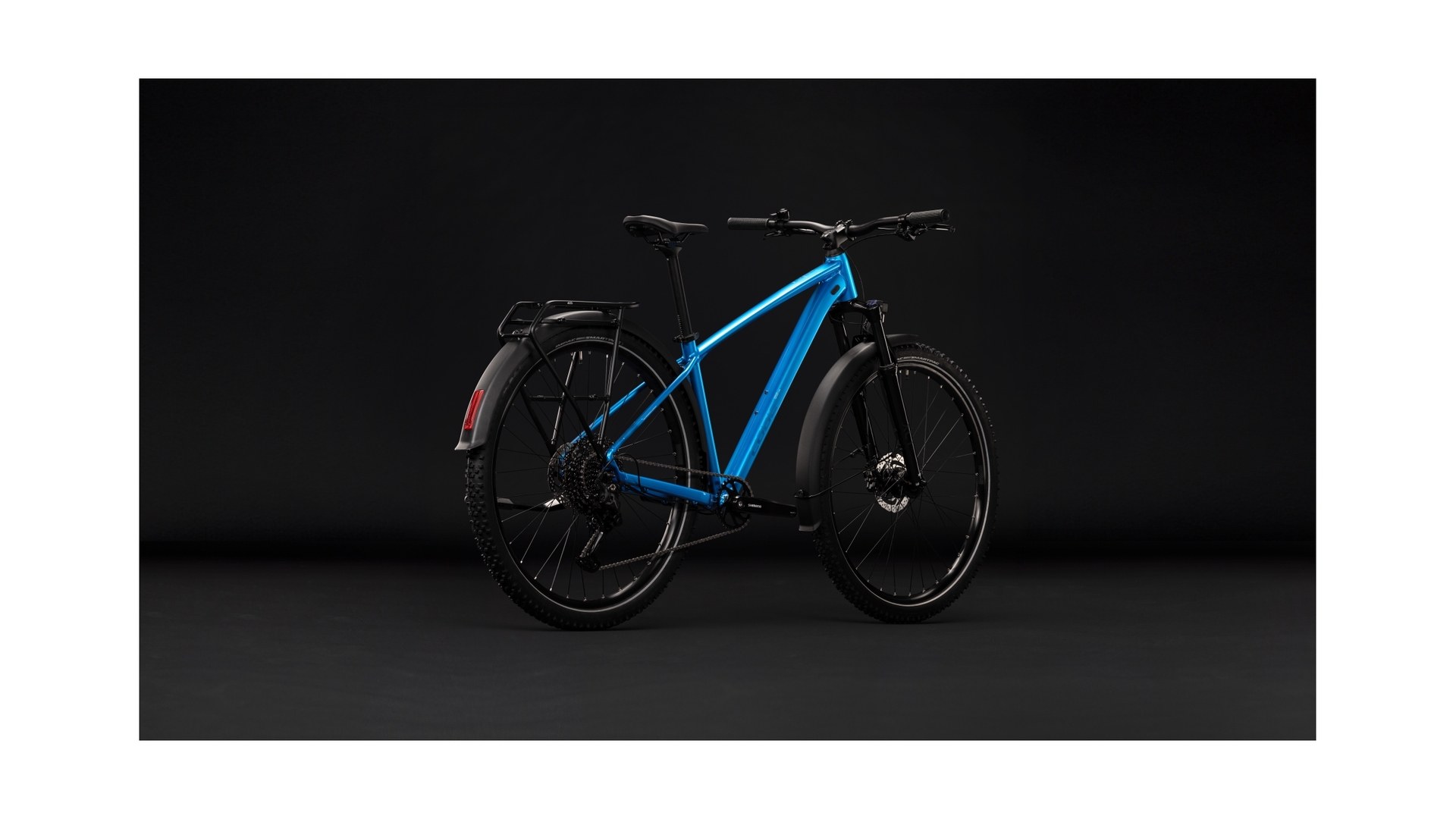

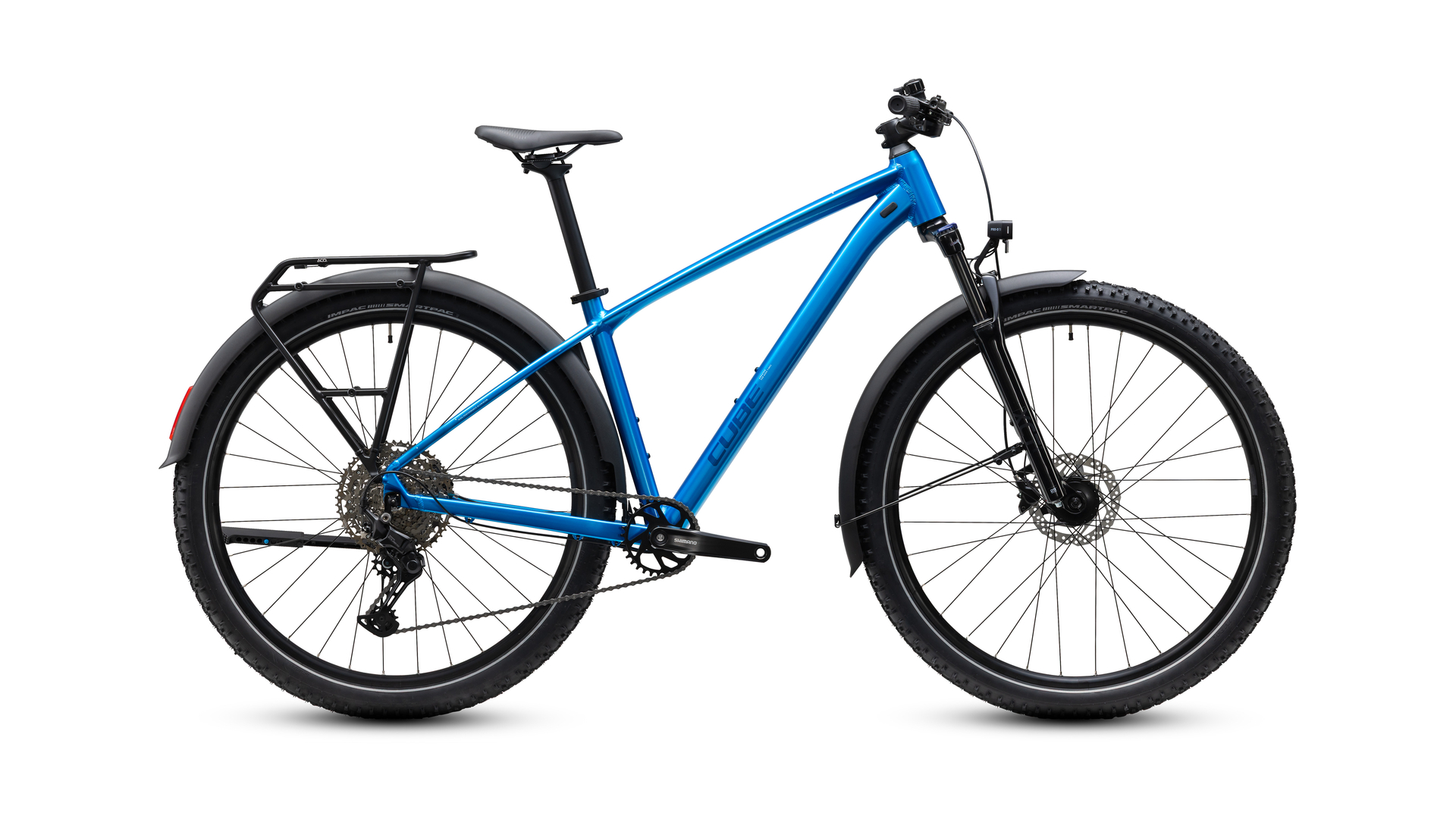

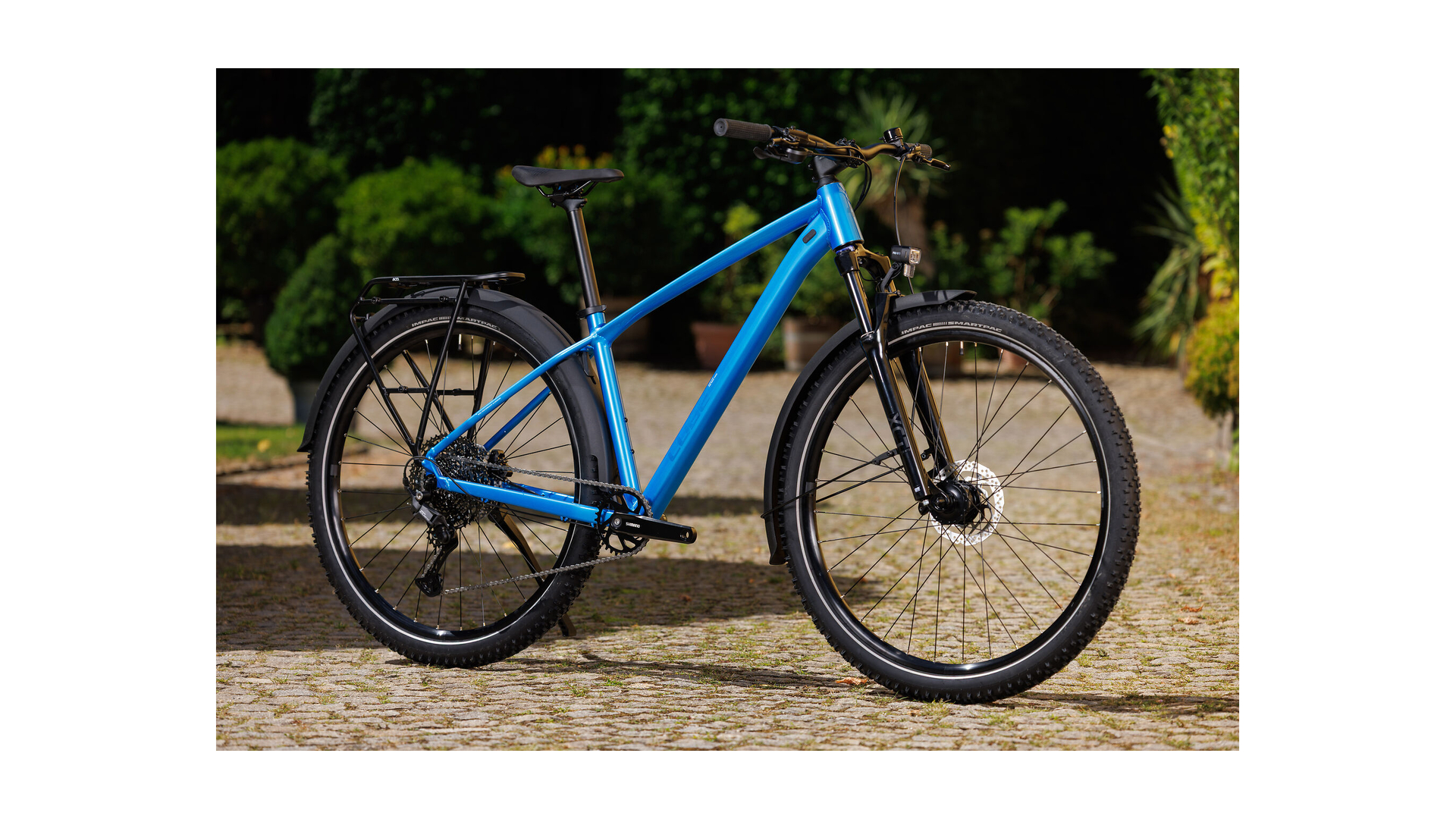

CUBE AIM PRO FE TOPASBLUE/BLUE L |
Colour
|
TOPASBLUE/BLUE |
Hscode
|
8712003090 |
Brand
|
CUBE |
Description frame
|
You'll notice that the Aim's High Performance Aluminium frame features almost organic lines, carefully crafted tube profiles and joints that are so smooth, one tube practically flows into the next. None of that is an accident – we believe a frame that fun |
Frame
|
Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Flat Mount Brake, SIC Mount, FM Kickstand Mount |
Size
|
L |
Size range
|
Size Split: 27.5: XS, S // 29: M, L, XL |
Fork
|
SR Suntour XCT, 100mm |
Headset
|
CUBE FPH868p, Tapered, Semi-Integrated |
Stem
|
CUBE Performance Stem, 31.8mm |
Handlebar
|
CUBE Rise Trail Bar, 680mm |
Grips
|
ACID Icon |
Rear derailleur
|
Shimano Cues RD-U6000-GS, 11-Speed |
Shifters
|
Shimano Cues SL-U6000, Rapidfire-Plus |
Brakes
|
Shimano BR-MT200/UR300, Hydr, Disc Brake, PM/FM (160/160) |
Bottom bracket
|
Thun Paso-ML, 73mm BSA |

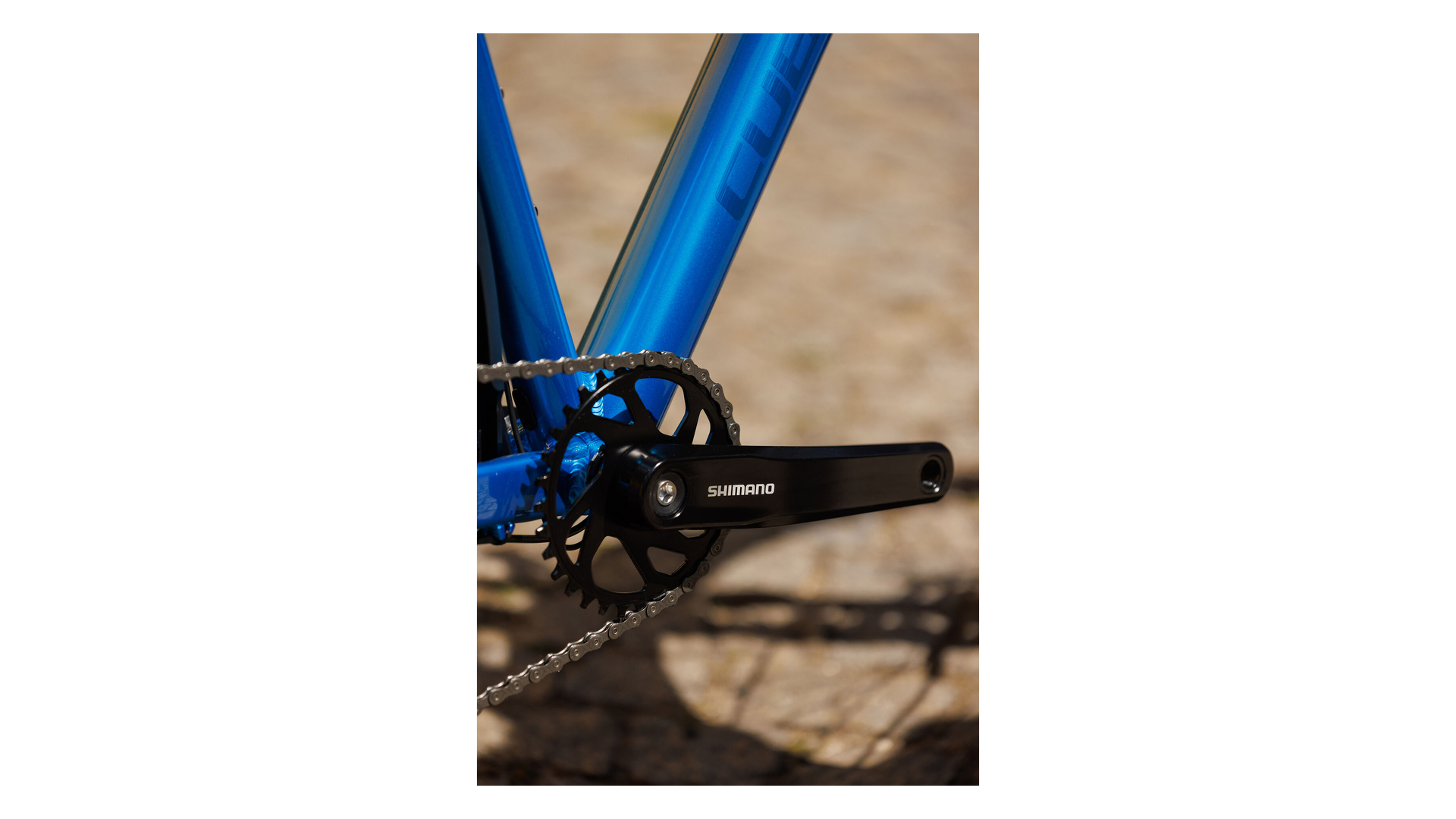

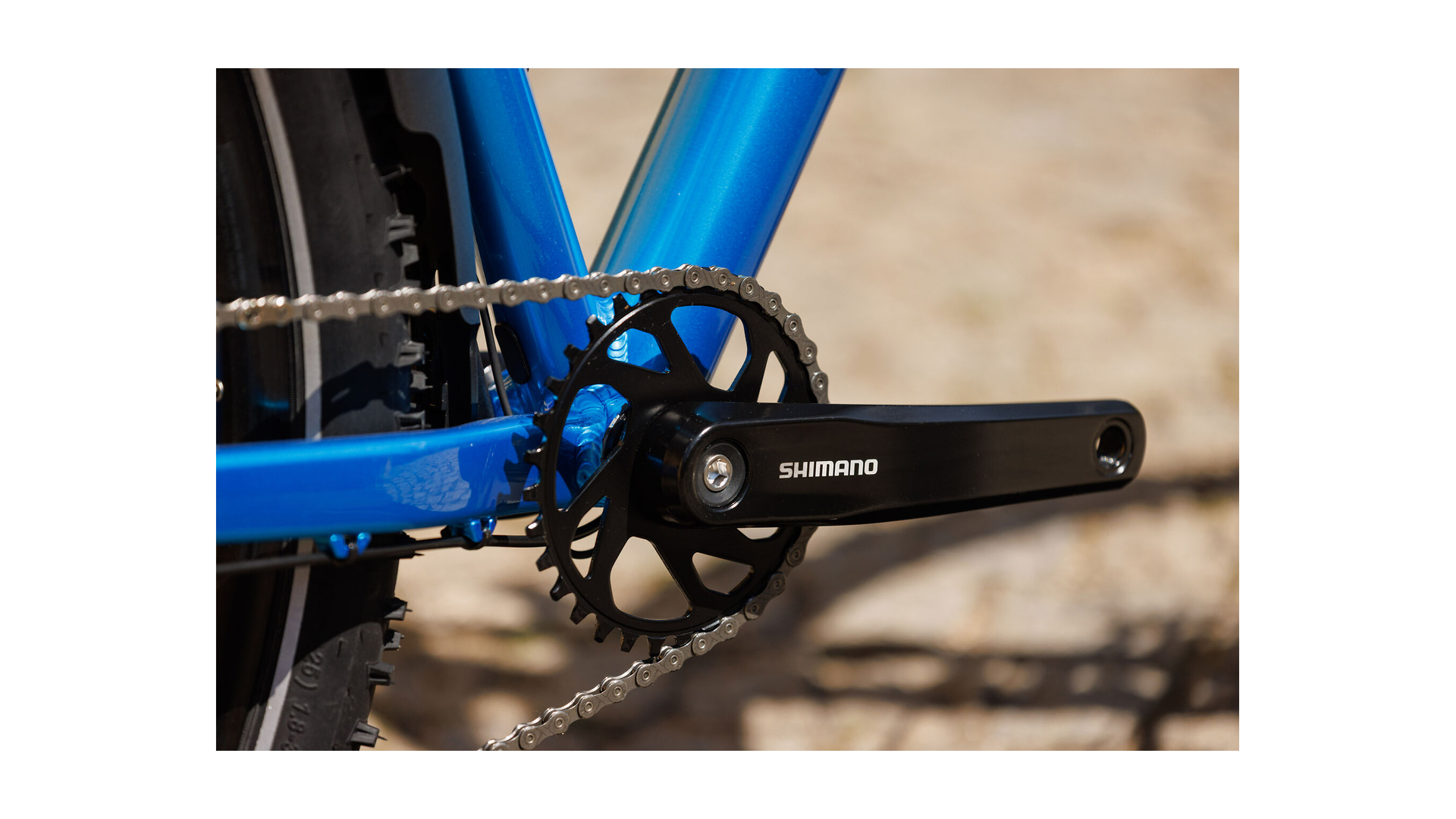

Crankset
|
Shimano Cues FC-UT400, 32T |
Cassette
|
Shimano Cues CS-LG400, 11-50T |
Chain
|
KMC xGlide |
Rims
|
ACID EX25, 32H, Disc, Tubeless Ready |
Hub front
|
Shimano DH-3D32, Hub Dynamo, QR |
Hub rear
|
ACID Pro, QR, 6-Bolt |
Tires
|
Impac Smartpac, Draht, 2.25 |
Pedals
|
CUBE PP MTB |
Saddle
|
ACID Venec Lite |

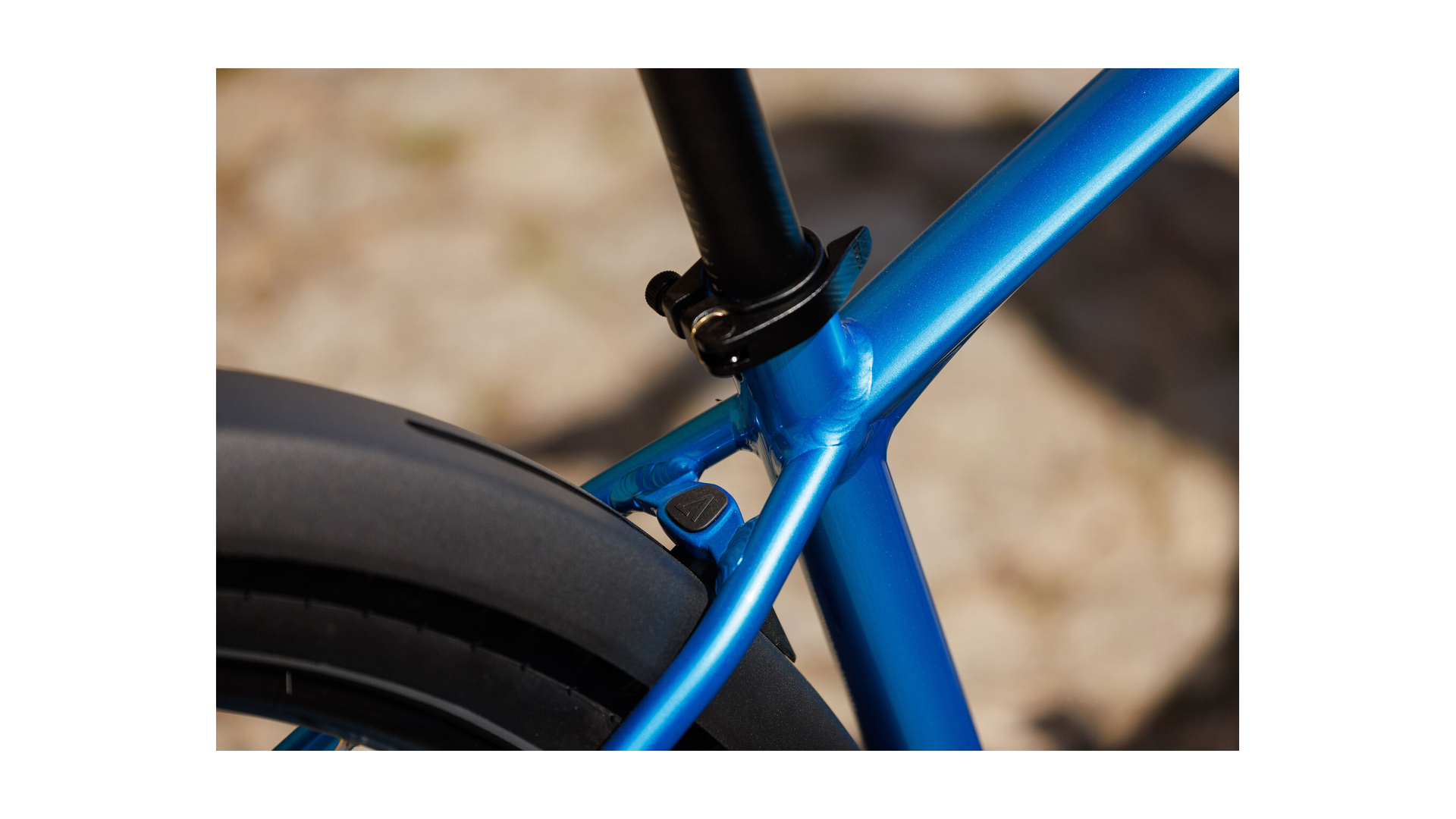

Seatpost
|
CUBE Performance Post, 30.9mm |

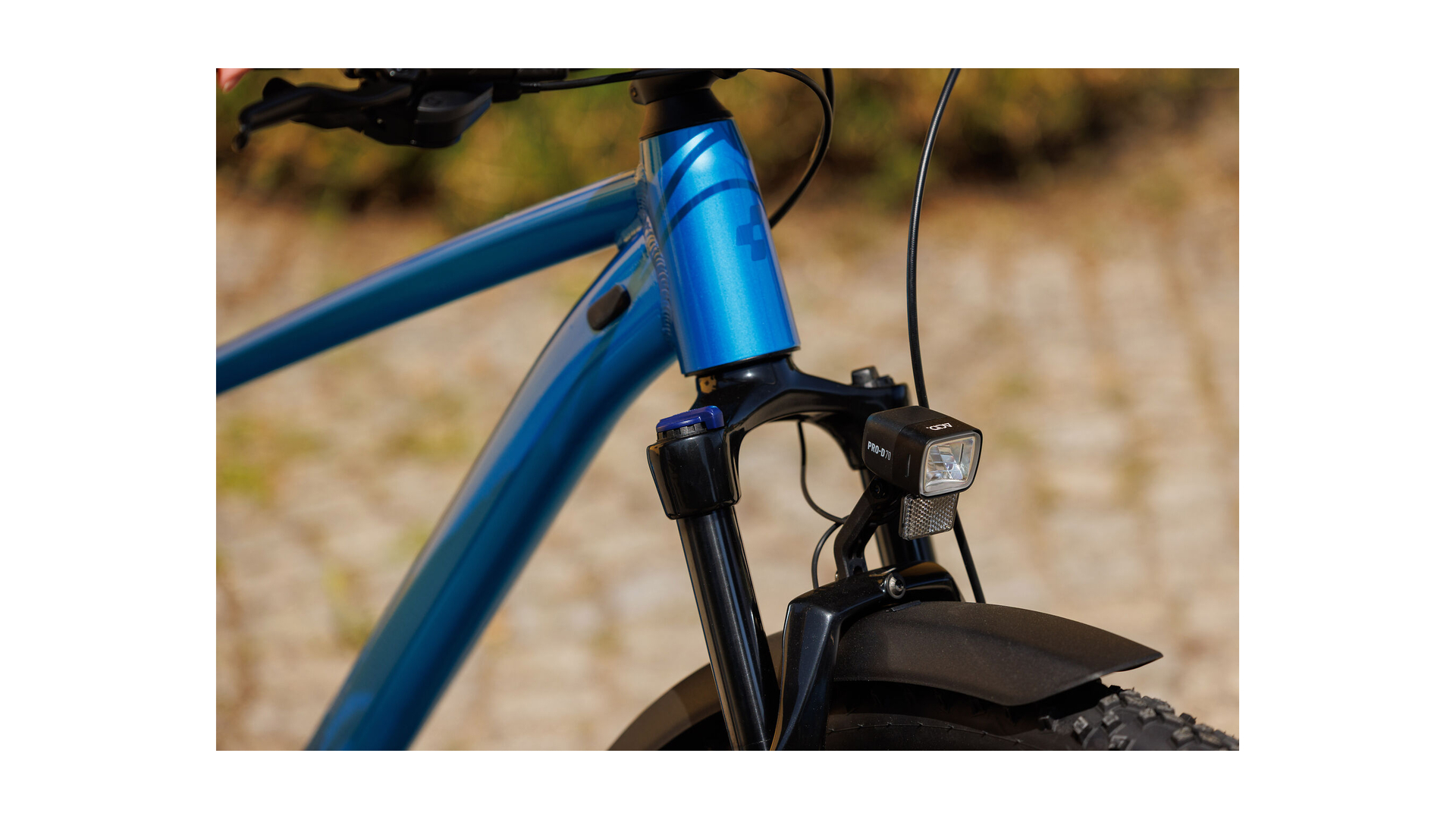

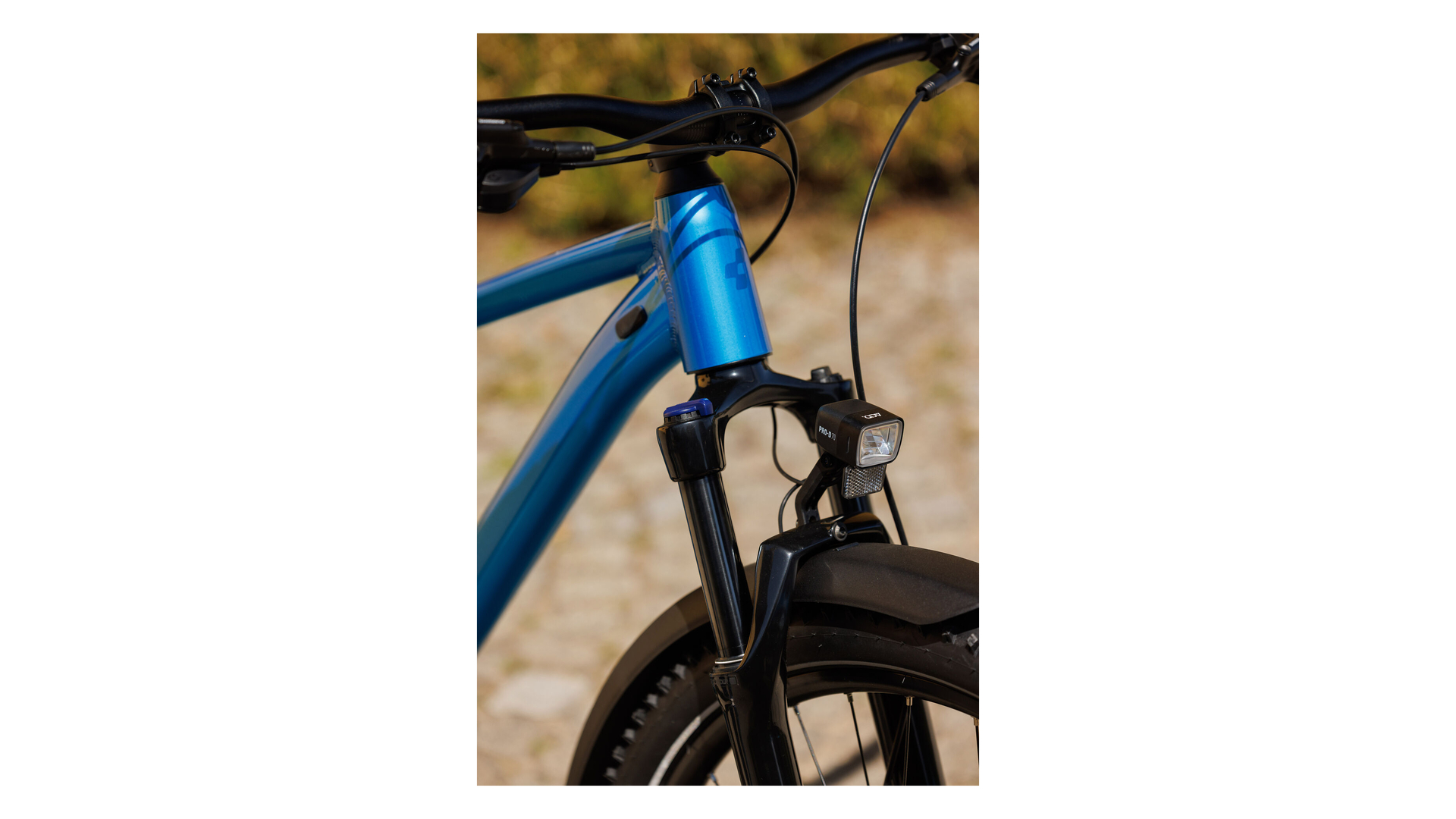

Front light
|
ACID Pro-D 70 |
Rear light
|
ACID Pro-D SIC 2.0 |
Kickstand
|
ACID FM Pure Silent |
Mudguard
|
ACID 57 SIC 2.0 |
Bell
|
ACID |

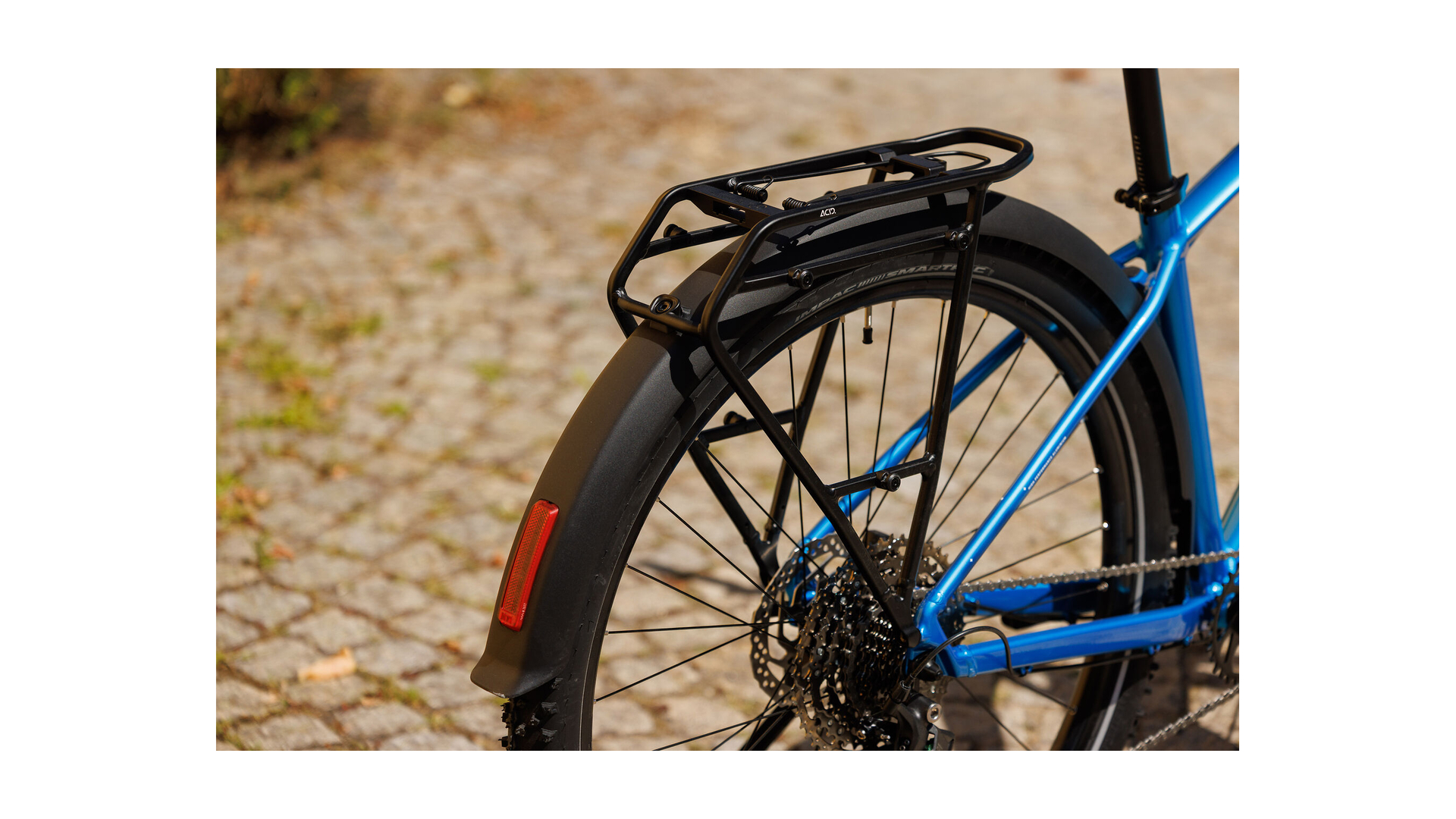

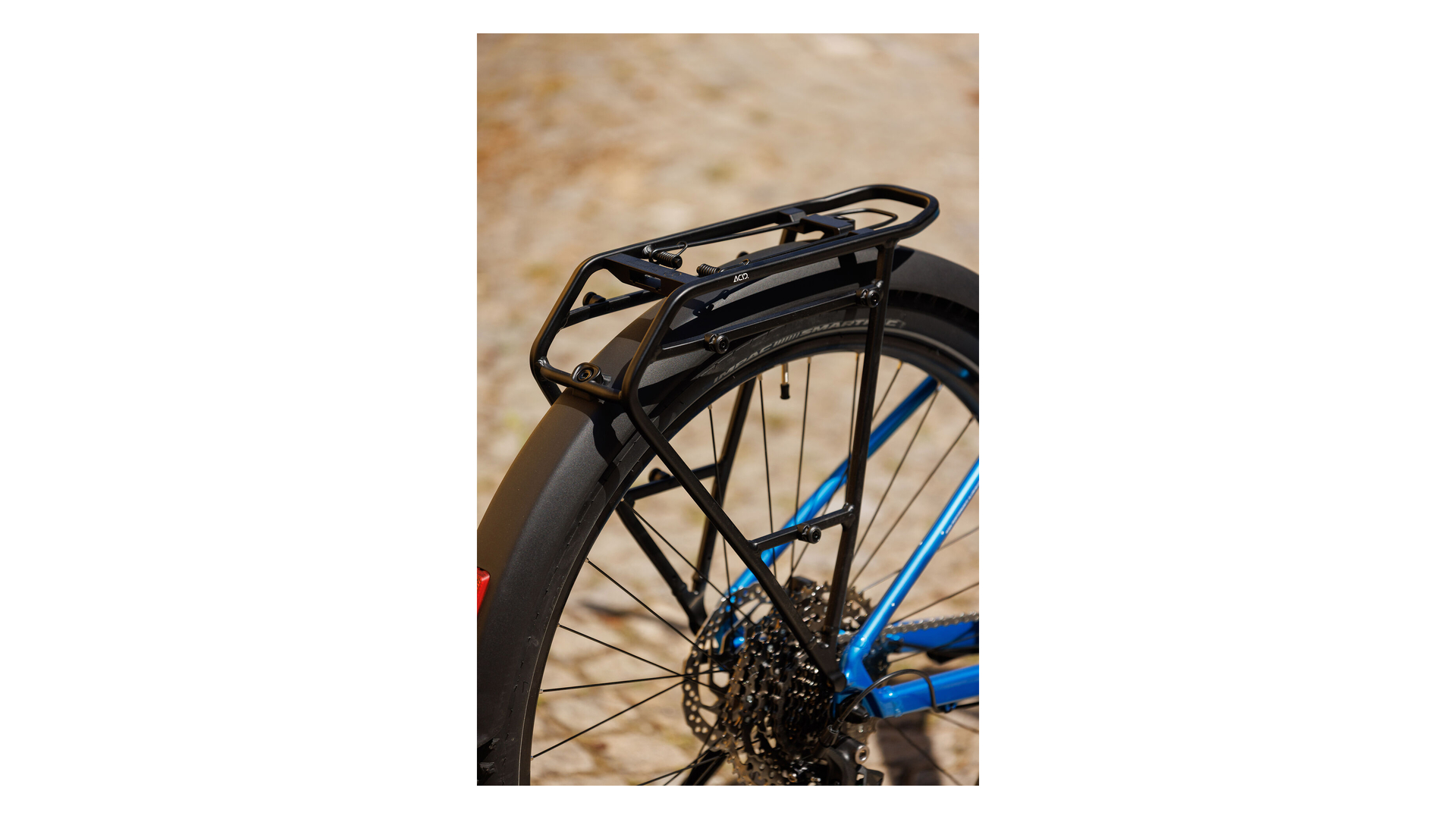

Carrier
|
ACID SIC 2.1 RILink |
Net weight kg
|
18.26 |
