Scancode
|
104020-72- |
Brand
|
CUBE |
Product description
|

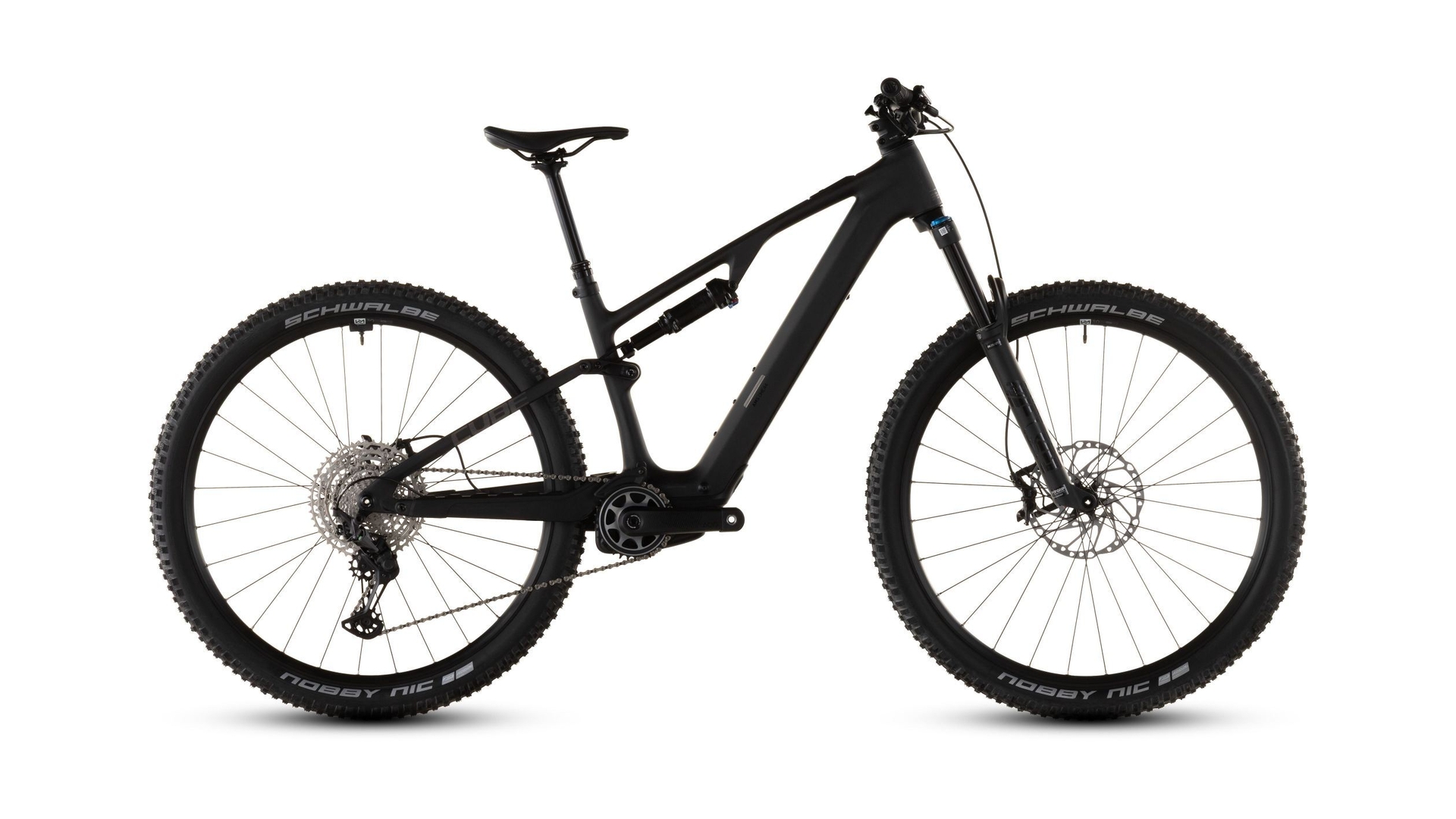

CUBE AMS HYBRID ONE44 C:62 PRO 400X BLACKLINE L |
Size range
|
S, M, L, XL |
Wheelsize
|
29 |
Color
|
blackline |
Description frame
|
The AMS Hybrid ONE44 C:62 frame begins with our time-proven C:62® carbon, crafted into a structure that's light enough for a lively ride feel but plenty tough enough for the trails. The 400Wh battery is incorporated into the down tube, as close to the lig |
Frame
|
C:62® Monocoque Advanced Twin Mold Technology, Efficient Trail Control, FSP 4-Link. Agile Trail Geometry, Boost 148, UDH™, Fully Integrated Battery, Advanced Internal Cable Routing |
Fork
|
Fox 34 Float Rhythm GRIP, Tapered, 15x110mm, 140mm |
Shock
|
Fox Float Rhythm RC, 210x55mm, Adjustable LSR w/ 2-Pos. Lever |
Shock hardware
|
Front: 30x8mm, Rear: DU-Bushing 12.7mm |
Headset
|
ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment |
Stem
|
CUBE Stereo Stem w/ Cable Routing |
Handlebar
|
Newmen Evolution SL 318.25, 780mm |
Grips
|
ACID Disrupt, Soft Compound |
Rear derailleur
|
Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed |
Chain guide
|
Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate |
Shifters
|
Shimano Deore SL-M6100-IR, Direct Attach, Rapidfire-Plus |
Brakes
|
Shimano XT BR-M8120, Hydr. Disc Brake (203/180) |
Crankset
|
ACID MTB Hybrid Carbon, 32T |
Crankset chainring sizes
|
32T |
Cassette
|
Shimano Deore CS-M6100, 10-51T |
Number of gears
|
12 |
Chain
|
KMC e12 |
Wheelset
|
Newmen Performance 30 base/base, 28/28 Spokes, 15x110mm / 12x148mm, Tubeless Ready |
Tires
|
Schwalbe Nobby Nic, Addix Performance, Kevlar, 2.4 |
Pedals
|
ACID PP MTB |
Saddle
|
ACID Venec EMTB Trail 140 |
Seatpost
|
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm |
Seat post dropper yesno
|
YES |
Engine
|
Bosch Drive Unit Performance SX max. 60Nm (BDU31) |
Battery
|
Bosch CompactTube 400 |
Charger
|
Bosch 2A |
Remote
|
Bosch System Controller, incl. Mini Remote |
Net weight kg
|
18.1 |
Coo
|
DE |
