Scancode
|
104300-72- |
Brand
|
CUBE |
Product description
|

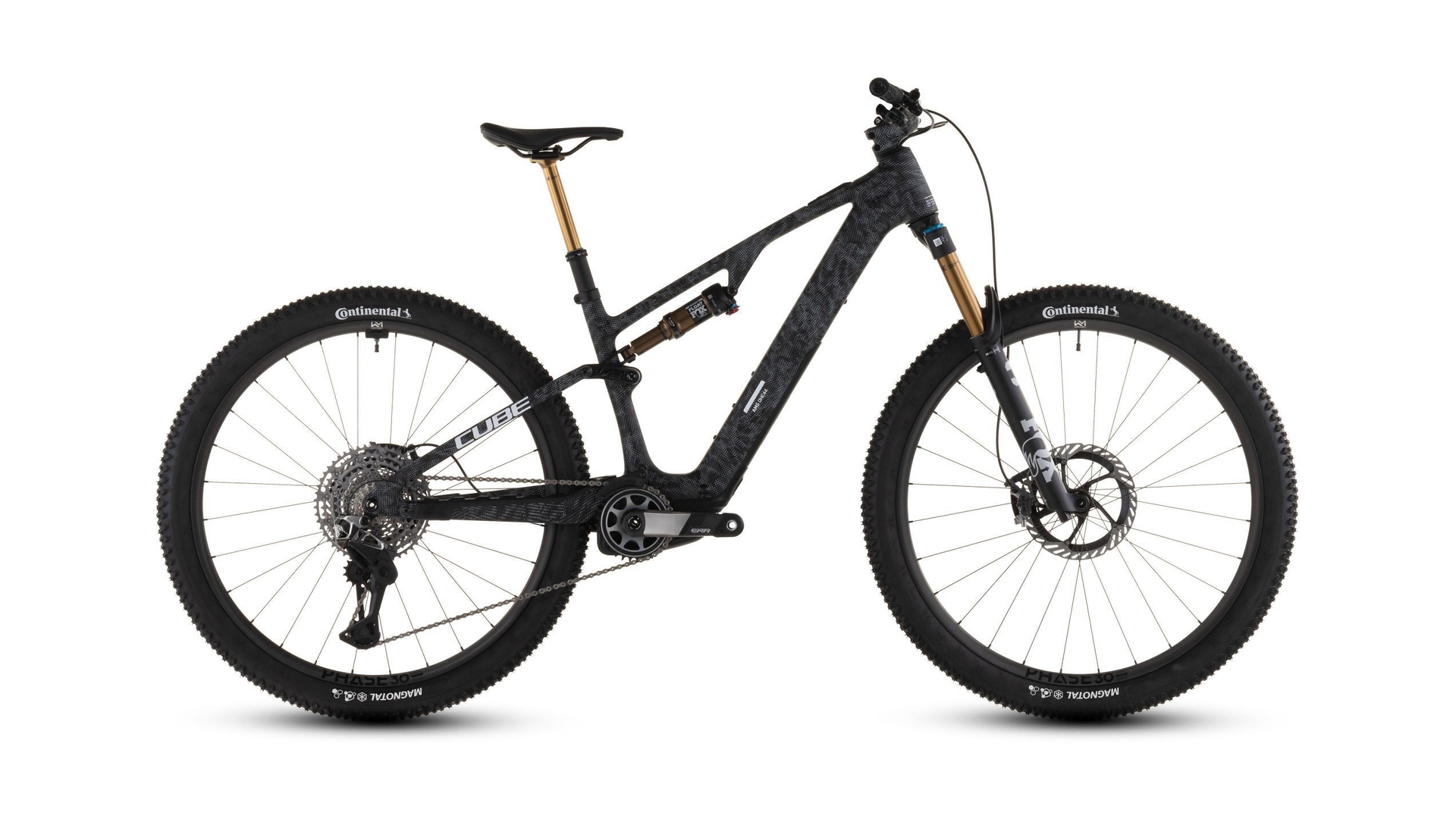

CUBE AMS HYBRID ONE44 C:68X SLT 400X MATRIXBLACK/WHITE L |
Size range
|
S, M, L, XL |
Wheelsize
|
29 |
Color
|
matrixblack´n´white |
Description frame
|
The AMS Hybrid ONE44 C:68X frame makes use of our most advanced C:68X® carbon material, for maximum possible strength and stiffness with the lowest possible weight. The 400Wh battery is incorporated into the down tube, as close to the lightweight Bosch SX |
Frame
|
C:68X® Monocoque Advanced Twin Mold Technology, Effiecient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Fixed Integrated Battery, Advanced Internal Cable Routing |
Fork
|
Fox 36 Float SL Factory GRIPX2, Tapered, 15x110mm, 140mm |
Shock
|
Fox Float Factory, 210x55mm, Adjustable LSC/LSR w/ 2-Pos. Lever |
Shock hardware
|
Front: 30x8mm, Rear: DU-Bushing 12.7mm |
Headset
|
ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment |
Integratedbarstem
|
CUBE Stereo Carbon Cockpit System |
Grips
|
ACID Disrupt, Soft Compound |
Rear derailleur
|
Shimano XTR Di2 RD-M9260-SGS, 12-Speed, Electronic Shifting System |
Chain guide
|
Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate |
Shifters
|
Shimano XTR Di2 SW-M9250-I, Direct Attach |
Brakes
|
Shimano XTR BR-M9220, Hydr. Disc Brake (203/180) |
Crankset
|
Race Face ERA E-MTB, 32T |
Crankset chainring sizes
|
32T |
Cassette
|
Shimano XTR CS-M9200, 10-51T |
Number of gears
|
12 |
Chain
|
Shimano CN-M9100 |
Wheelset
|
Newmen Phase 30 base/base, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready |
Tires
|
Conti Magnotal, Trail Soft, Tubeless Ready, 2.4 |
Pedals
|
ACID PP MTB |
Saddle
|
ACID Venec EMTB Trail 140 |
Seatpost
|
Fox Transfer Factory, 31.6mm, Kashima Coated |
Seat post dropper yesno
|
YES |
Engine
|
Bosch Drive Unit Performance SX max. 60Nm (BDU31) |
Battery
|
Bosch CompactTube 400 |
Charger
|
Bosch 4A |
Remote
|
Bosch System Control, incl. Mini Remote |
Net weight kg
|
16.8 |
Coo
|
DE |
