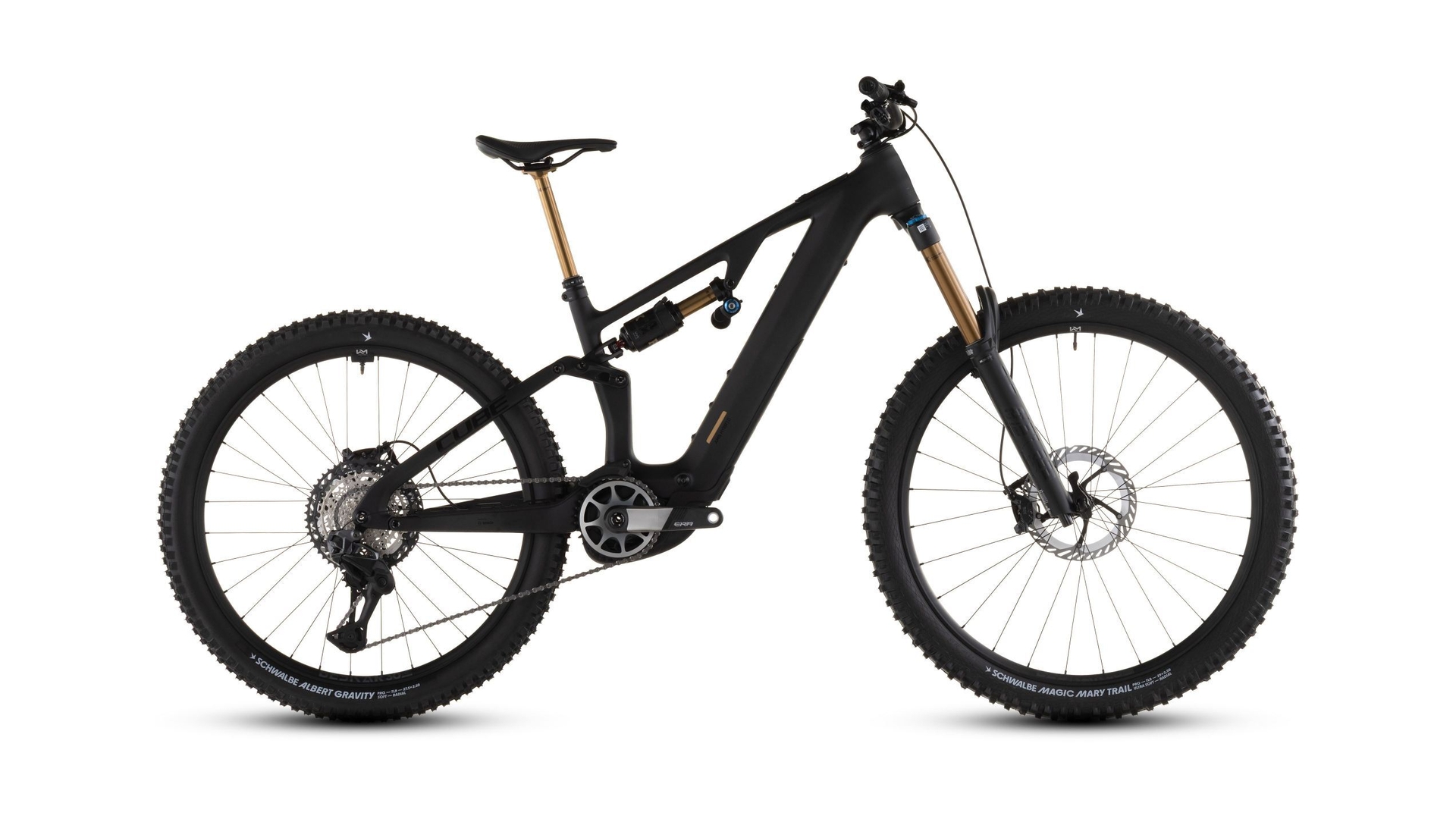

    CUBE AMS HYBRID ONE77 C:62 AT 600X CARBON/GOLDCarbon / Gold

    CUBE AMS HYBRID ONE77 C:62 AT 600X CARBON/GOLD
    Images shown above are indicative only.
    Components and graphical details may differ from the actual model.

    CUBE AMS HYBRID ONE77 C:62 AT 600X CARBON/GOLDCarbon / Gold

    A bike fit for team riders needs components that'll last the course – literally. That's why, with the AMS Hybrid 177…

    Out of stock
    £7,499.00

    Options

    FREE Delivery

    On full-price bikes

    FREE click & collect

    On all orders

    FREE bike assembly

    On all Click & Collect orders

    All major cards accepted

    No card processing fees

    Cycle to Work available

    Contact us for details

    Minimum 12 month warranty

    On all products

    • A bike fit for team riders needs components that'll last the course – literally. That's why, with the AMS Hybrid 177 C:62 AT 600X, we started with Fox's smooth and versatile Fox 38 Float Factory fork and matching Float X2 Factory shock. Shimano's electronic XT Di2 1x12 gears – with a RaceFace Era carbon crank – transfer the combined power of your legs and the Bosch CX-R drive to the trail. There's a Kiox 400C controller to put you in charge of the Bosch drive and 600Wh battery, of course. A dropper post, naturally. And powerful Shimano XT hydraulic disc brakes working with Schwalbe Magic Mary and Albert 2.5in tyres on Newmen Beskar 30 wheels to keep you on track and in control. The complete package, in other words, for big Alpine days out...<br><br><strong>Frame description</strong><br />We set out to make a lighter, more capable all-mountain e-mtb – and the AMS Hybrid 177 C:62 frame is the heart of it. Built from our C:62 carbon and featuring Bosch's BDU38YY motor mount for compatibility with both SX and CX motors, it features a built-in 600Wh PowerTube battery. We've tweaked the geometry and kinematics to suit a bike built to take on rowdy, technical trails at high speed. Mullet wheels and 170mm travel front and rear deliver epic handling, and an angle-adjustable headset means you can tweak the geometry to suit your own preference. Internal Cable Routing complements the frame's clean aesthetic and, of course, there's a UDH gear hanger and Direct Mount chain guard. Bring it on!

    • Scancode
      105300-72-
      Brand
      CUBE
      Product description
      CUBE AMS HYBRID ONE77 C:62 AT 600X CARBON/GOLD L
      Size range
      S, M, L, XL
      Wheelsize
      29
      Color
      carbon´n´gold
      Description frame
      We set out to make a lighter, more capable all-mountain e-mtb – and the AMS Hybrid 177 C:62 frame is the heart of it. Built from our C:62® carbon and featuring Bosch's BDU38YY motor mount for compatibility with both SX and CX motors, it features a built-i
      Frame
      C:62® Monocoque Advanced Twin Mold Technology, Efficient Trail Control, FSP 4-Link. Agile Trail Geometry, Boost 148, UDH™, Fully Integrated Battery, Advanced Internal Cable Routing
      Fork
      Fox 38 Float Factory GRIPX2, Tapered, 15x110mm, E-Bike Optimized, 170mm
      Shock
      Fox Float X2 Factory, 230x65mm, Adjustable HSC/LSC/HSR/LSR w/ 2-Pos. Lever
      Shock hardware
      Front: 30x8mm, Rear: w/o DU-Bushing 15 mm
      Headset
      ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment
      Stem
      Race Face Turbine R 35
      Handlebar
      Race Face ERA 35
      Grips
      ACID Disrupt, Soft Compound
      Rear derailleur
      Shimano XT Di2 RD-M8260-SGS, 12-Speed, Electronic Shifting System
      Chain guide
      Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
      Shifters
      Shimano XT Di2 SW-M8250-IR, Direct Attach
      Brakes
      Shimano XT BR-M8220, Hydr. Disc Brake (203/203)
      Crankset
      Race Face ERA E-MTB, 36T
      Crankset chainring sizes
      36T
      Cassette
      Shimano XT CS-M8200, 10-51T
      Number of gears
      12
      Chain
      Shimano XT CN-M8100
      Wheelset
      Newmen Beskar 30 base/strong, 28/32 Spokes, 15x110mm/12x148mm, Tubeless Ready
      Front tire
      Schwalbe Magic Mary Trail Pro, Addix Ultrasoft, Kevlar, 2.5
      Rear tire
      Schwalbe Albert Gravity Pro, Addix Soft, Kevlar, 2.5
      Pedals
      ACID PP MTB
      Saddle
      ACID Venec EMTB Trail 140
      Seatpost
      Fox Transfer Factory 31.6mm, Kashima Coated
      Seat post dropper yesno
      YES
      Engine
      Bosch Drive Unit Performance Line CX-R 100Nm (BDU38)
      Battery
      Bosch PowerTube 600
      Charger
      Bosch 4A
      Remote
      Bosch Mini Remote
      Display
      Bosch Kiox 400C
      Net weight kg
      21.4
      Coo
      DE
