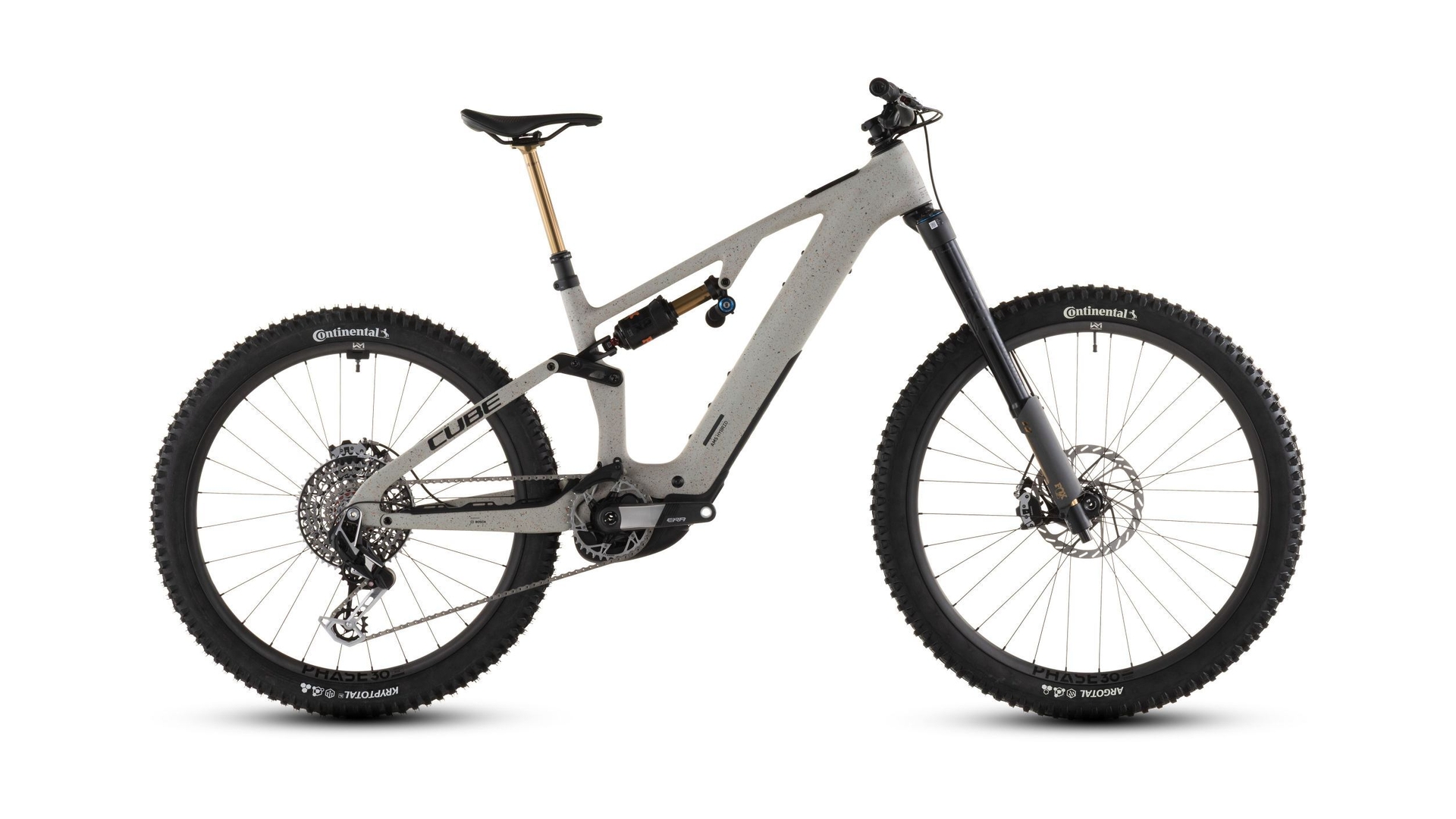

    CUBE AMS HYBRID ONE77 C:62 SUPER TM 600X REEDBEIGEGRITReedbeigegrit / Orange

    CUBE AMS HYBRID ONE77 C:62 SUPER TM 600X REEDBEIGEGRIT
    Images shown above are indicative only.
    Components and graphical details may differ from the actual model.

    CUBE AMS HYBRID ONE77 C:62 SUPER TM 600X REEDBEIGEGRITReedbeigegrit / Orange

    A special bike needs special treatment, which is why we fitted Bosch's powerful and versatile CX-R drive to the AMS Hybr…

    Out of stock
    £9,999.00

    Options

    FREE Delivery

    On full-price bikes

    FREE click & collect

    On all orders

    FREE bike assembly

    On all Click & Collect orders

    All major cards accepted

    No card processing fees

    Cycle to Work available

    Contact us for details

    Minimum 12 month warranty

    On all products

    • A special bike needs special treatment, which is why we fitted Bosch's powerful and versatile CX-R drive to the AMS Hybrid 177 C:62 Super TM 600X. With up to 100Nm of torque and 750W peak power – and a 600Wh battery – it has more than enough grunt to get you back to the top for one more run, again and again. Fox's Podium fork and Float X2 Factory shock help deliver 170mm of rock-devouring travel to the Newmen Phase 30 wheelset, shod with Continental Argotal and Kryptotal 2.4in tyres. Sram's Maven Ultimate hydraulic disc brakes and a dropper post help keep you in full control at all times. And Sram's precise XX Eagle Transmission gears with RaceFace Era carbon crank are all you need for long days of Alpine-descending mayhem. Bring it on!<br><br><strong>Frame description</strong><br />We set out to make a lighter, more capable all-mountain e-mtb – and the AMS Hybrid 177 C:62 frame is the heart of it. Built from our C:62 carbon and featuring Bosch's BDU38YY motor mount for compatibility with both SX and CX motors, it features a built-in 600Wh PowerTube battery. We've tweaked the geometry and kinematics to suit a bike built to take on rowdy, technical trails at high speed. Mullet wheels and 170mm travel front and rear deliver epic handling, and an angle-adjustable headset means you can tweak the geometry to suit your own preference. Internal Cable Routing complements the frame's clean aesthetic and, of course, there's a UDH gear hanger and Direct Mount chain guard. Bring it on!

    • Scancode
      105400-72-
      Brand
      CUBE
      Product description
      CUBE AMS HYBRID ONE77 C:62 SUPER TM 600X COLOR1 L
      Size range
      M, L, XL
      Wheelsize
      29
      Color
      reedbeigegrit´n´orange
      Description frame
      We set out to make a lighter, more capable all-mountain e-mtb – and the AMS Hybrid 177 C:62 frame is the heart of it. Built from our C:62® carbon and featuring Bosch's BDU38YY motor mount for compatibility with both SX and CX motors, it features a built-i
      Frame
      C:62® Monocoque Advanced Twin Mold Technology, Effiecient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Fixed Integrated Battery, Advanced Internal Cable Routing
      Fork
      Fox Podium Factory GRIPX2, Tapered, 15x110mm, 170mm
      Shock
      Fox Float X2 Factory, 230x65mm, Adjustable HSC/LSC/HSR/LSR w/ 2-Pos. Lever
      Shock hardware
      Front: 30x8mm, Rear: w/o DU-Bushing 15 mm
      Headset
      ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment
      Stem
      Race Face Turbine R 35
      Handlebar
      Race Face ERA 35
      Grips
      ACID Disrupt, Soft Compound
      Rear derailleur
      Sram XX Eagle AXS™ Transmission, 12-Speed, Electronic Shifting System
      Chain guide
      Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
      Shifters
      Sram AXS™ Pod Ultimate Controller
      Brakes
      Sram Maven Ultimate, Hydr. Disc Brake (200/200)
      Crankset
      Race Face ERA E-MTB, 36T
      Crankset chainring sizes
      36T
      Cassette
      Sram XS-1297, 10-52T
      Number of gears
      12
      Chain
      Sram XX Eagle Transmission
      Wheelset
      Newmen Phase 30 base/strong, 28/32 Spokes, 15x110mm/12x148mm, Tubeless Ready
      Front tire
      Conti Argotal, Enduro Super Soft, Tubeless Ready, 2.4
      Rear tire
      Conti Kryptotal Rear, Downhill Soft, Tubeless Ready, 2.4
      Pedals
      ACID PP MTB
      Saddle
      ACID Venec EMTB Trail 140
      Seatpost
      Fox Transfer Factory 31.6mm, Kashima Coated
      Seat post dropper yesno
      YES
      Engine
      Bosch Drive Unit Performance Line CX-R 100Nm (BDU38)
      Battery
      Bosch PowerTube 600
      Charger
      Bosch 4A
      Remote
      Bosch Mini Remote
      Display
      Bosch Kiox 400C
      Net weight kg
      21.7
      Coo
      DE
