Scancode
|
162711-237- |
Brand
|
CUBE |
Product description
|

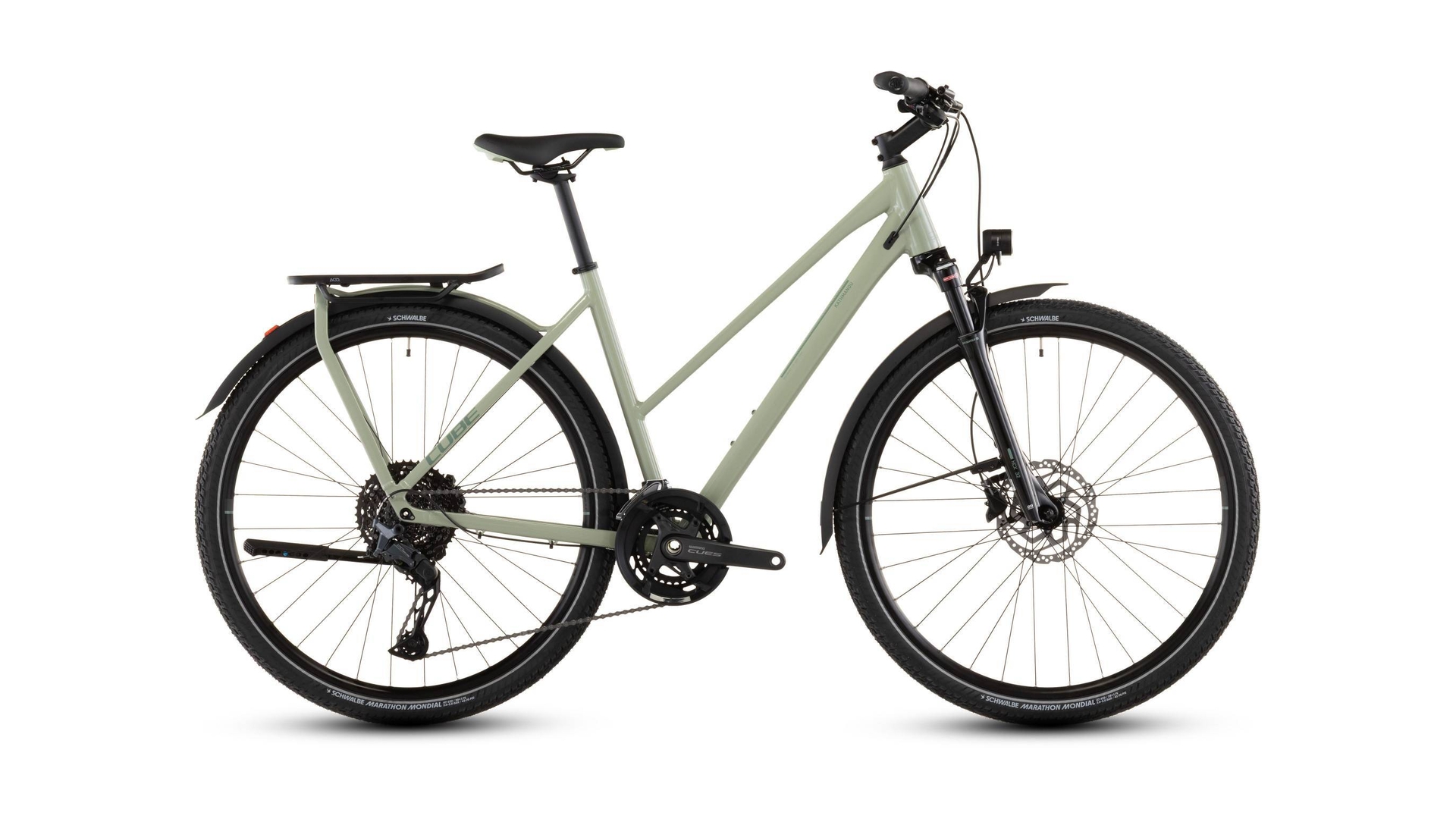

CUBE KATHMANDU EXC PEA/GREY T 46 CM |
Size range
|
Trapeze: 46cm / 50cm / 54cm |
Wheelsize
|
28 |
Color
|
pea´n´grey |
Description frame
|
CUBE design expertise is the name of the game for the Kathmandu's Trapeze frame. Its Integrated Carrier 3.0 is designed to work seamlessly with our ACID mudguard. We've fitted a flat mount for the rear disc brake – it also accommodates the kickstand – and |
Frame
|
Aluminium Superlite, Trekking Comfort, Integrated Carrier 3.0, Double Butted |
Fork
|
SR Suntour NCX32 E LO Air, 63mm |
Headset
|
VP Integrated, Top 1 1/8", Bottom 1 1/2" |
Stem
|
CUBE Performance Stem SLX, 31.8mm |
Handlebar
|
CUBE Comfort Trail Bar, 680mm |
Grips
|
ACID Travel Comfort |
Front derailleur
|
Shimano Cues FD-U6010, Top Swing, 31.8mm |
Shifters
|
Shimano Cues SL-U6000, Rapidfire-Plus |
Brakes
|
Shimano BR-MT200/UR300, Hydr. Disc Brake, PM/FM (160/180) |
Bottom bracket
|
Shimano BB-MT501, 68mm BSA |
Crankset
|
Shimano Cues FC-U6010, Hollowtech ll, 46x32T, Chainguard |
Crankset chainring sizes
|
46x32T |
Cassette
|
Shimano Cues CS-LG700, 11-45T |
Number of gears
|
22 |
Chain
|
KMC xGlide |
Rims
|
ACID EX25, 32H, Disc, Tubeless Ready |
Front hub
|
ACID PL-8, 32H, QR, Centerlock |
Rear hub
|
Shimano FH-TC500-HM, 12mm Through Axle, Centerlock |
Tires
|
Schwalbe Marathon Mondial, 47-622 |
Pedals
|
ACID PP Trekking |
Saddle
|
ACID Sequence Pro |
Seatpost
|
CUBE Performance Post, 27.2mm |
Rear light
|
ACID Mudguard Rear Light PRO-D, 6V, AC |
Kickstand
|
ACID FM Pure Kickstand |
Mudguard
|
ACID 56 Integrated Carrier 3.0 |
Bell
|
Reich Cycle Bells Ringsound |
Carrier
|
ACID Integrated Carrier 3.0, CUBE Adapter Compatible |
Net weight kg
|
16.2 |
Coo
|
DE |
