Scancode
|
1101210-77- |
Product description
|

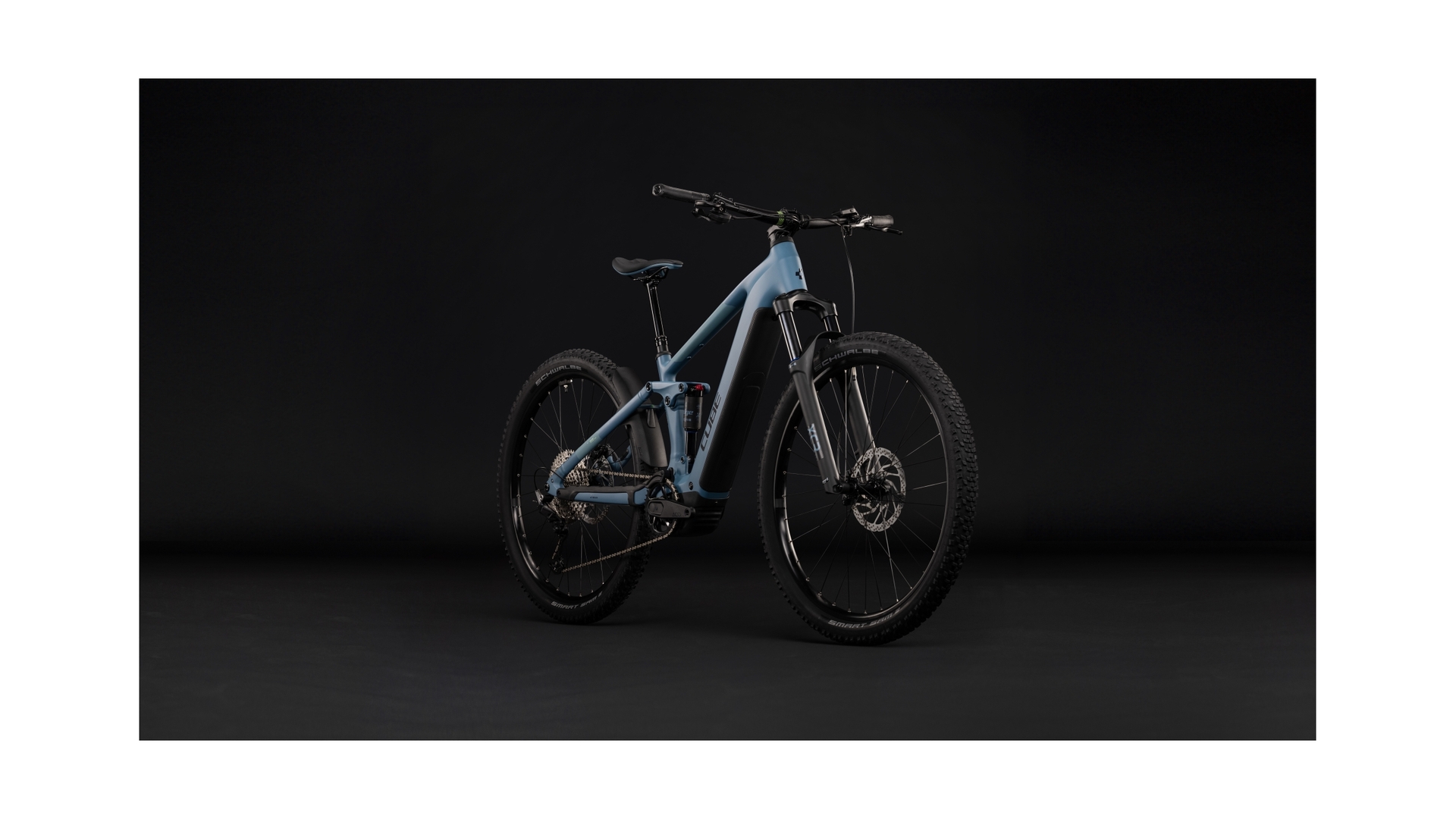

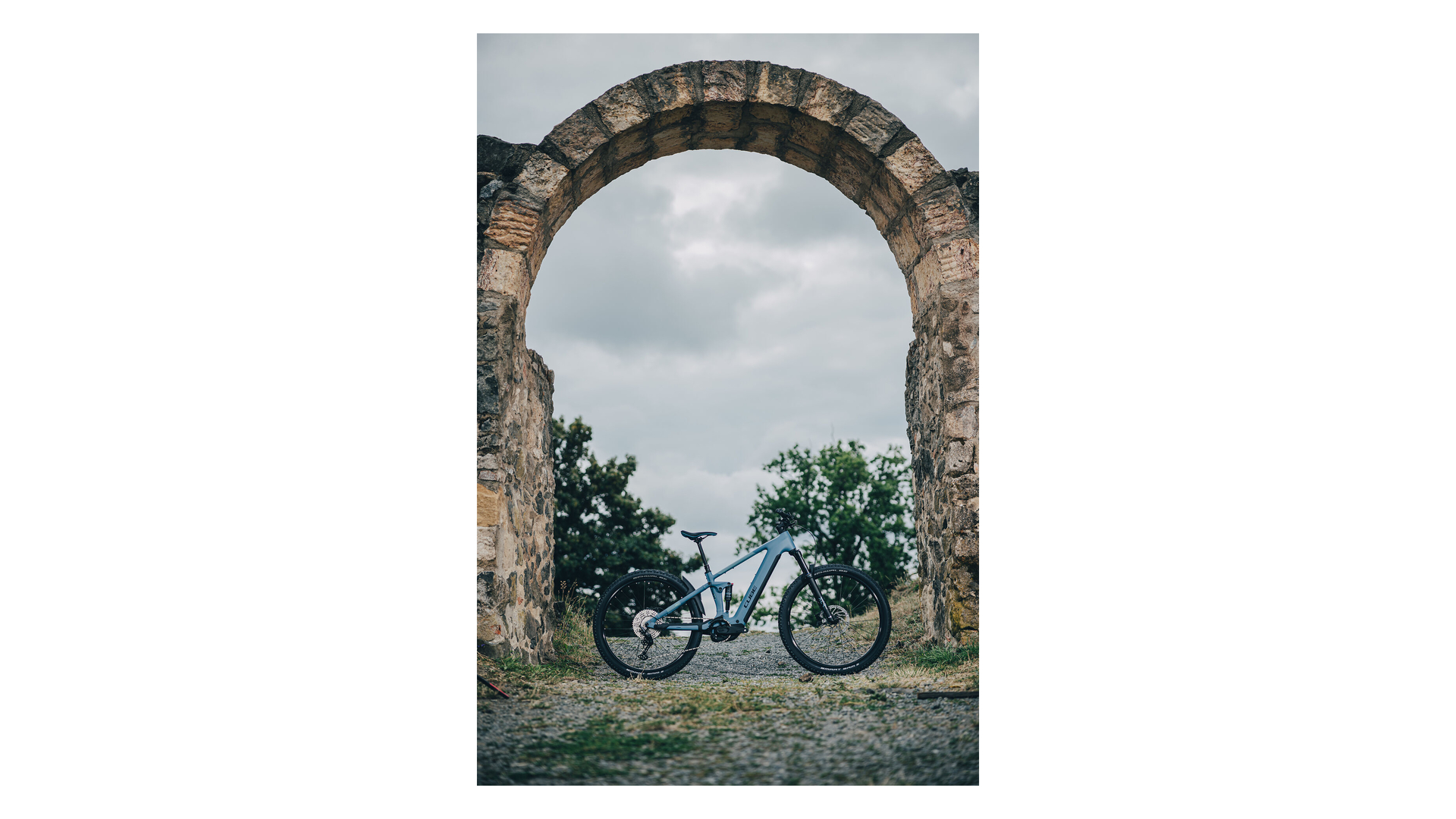

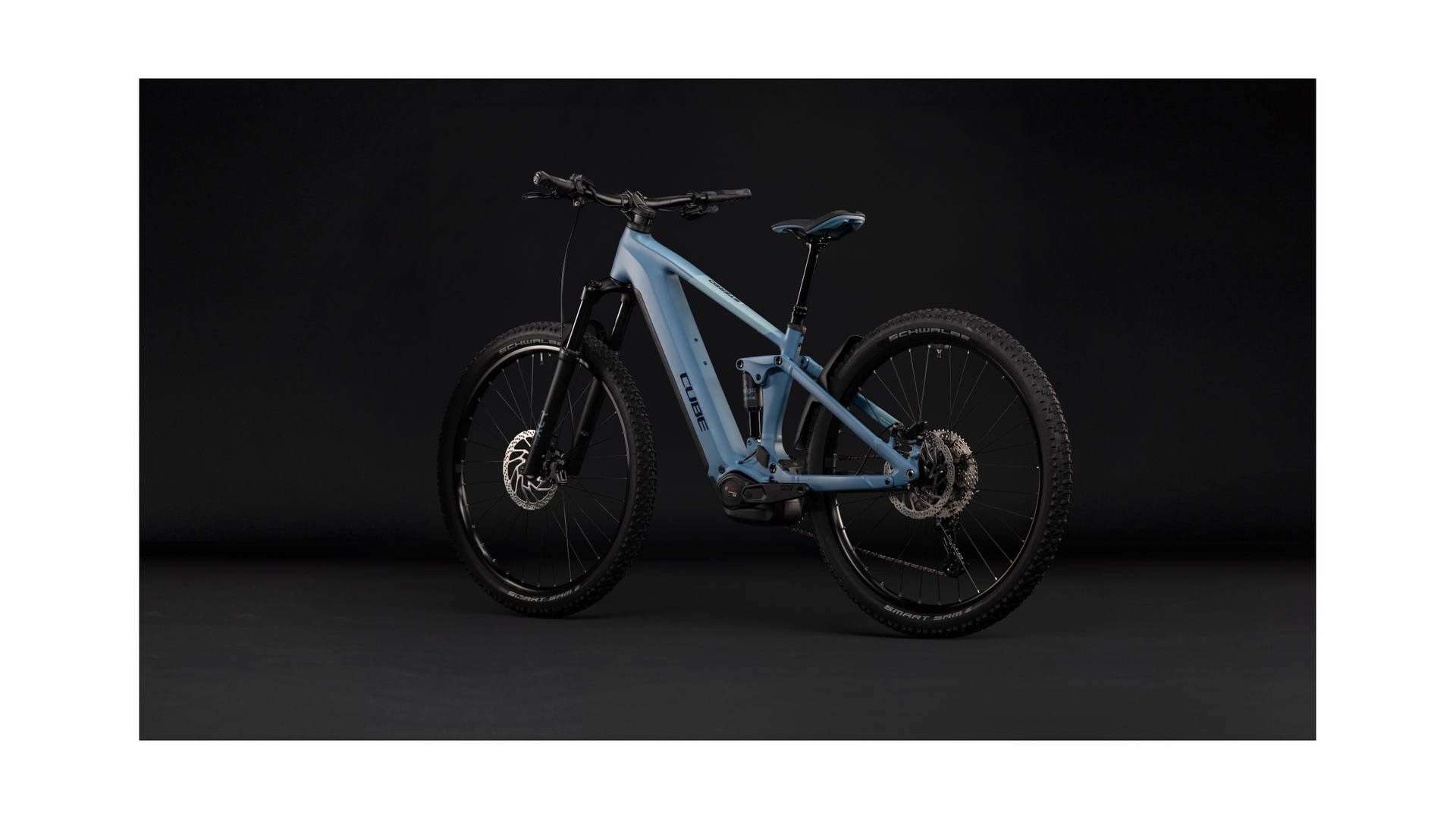

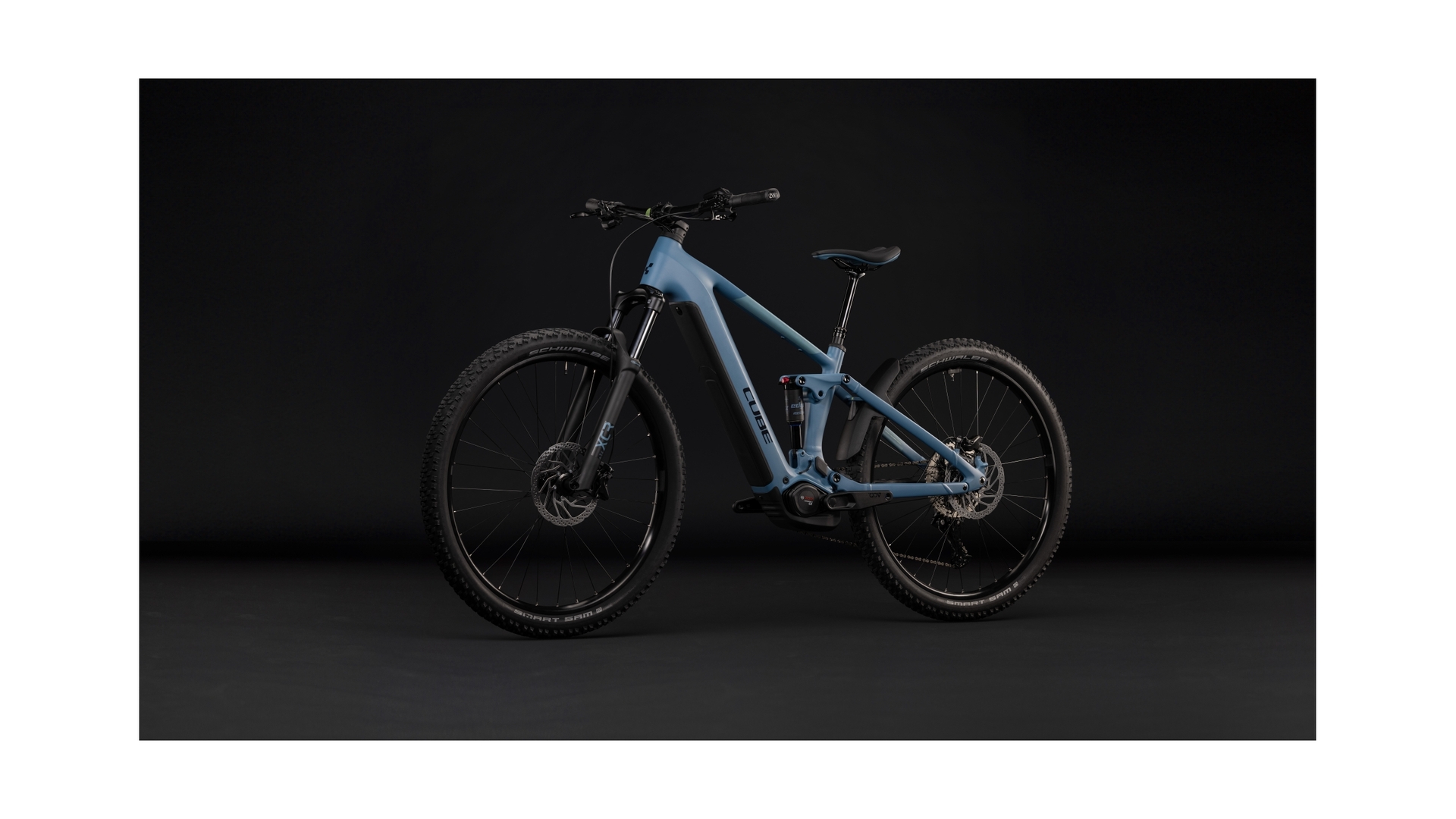

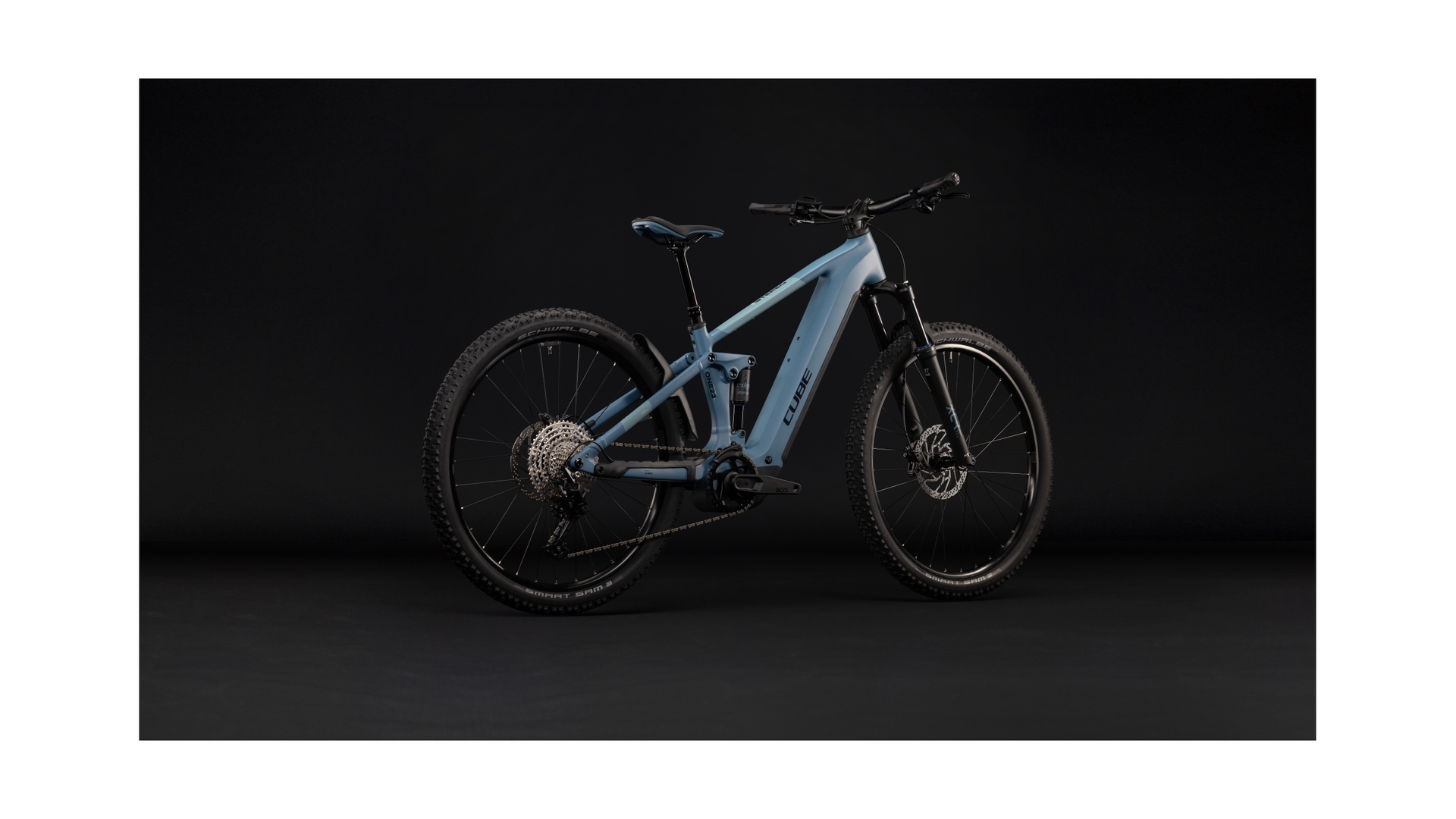

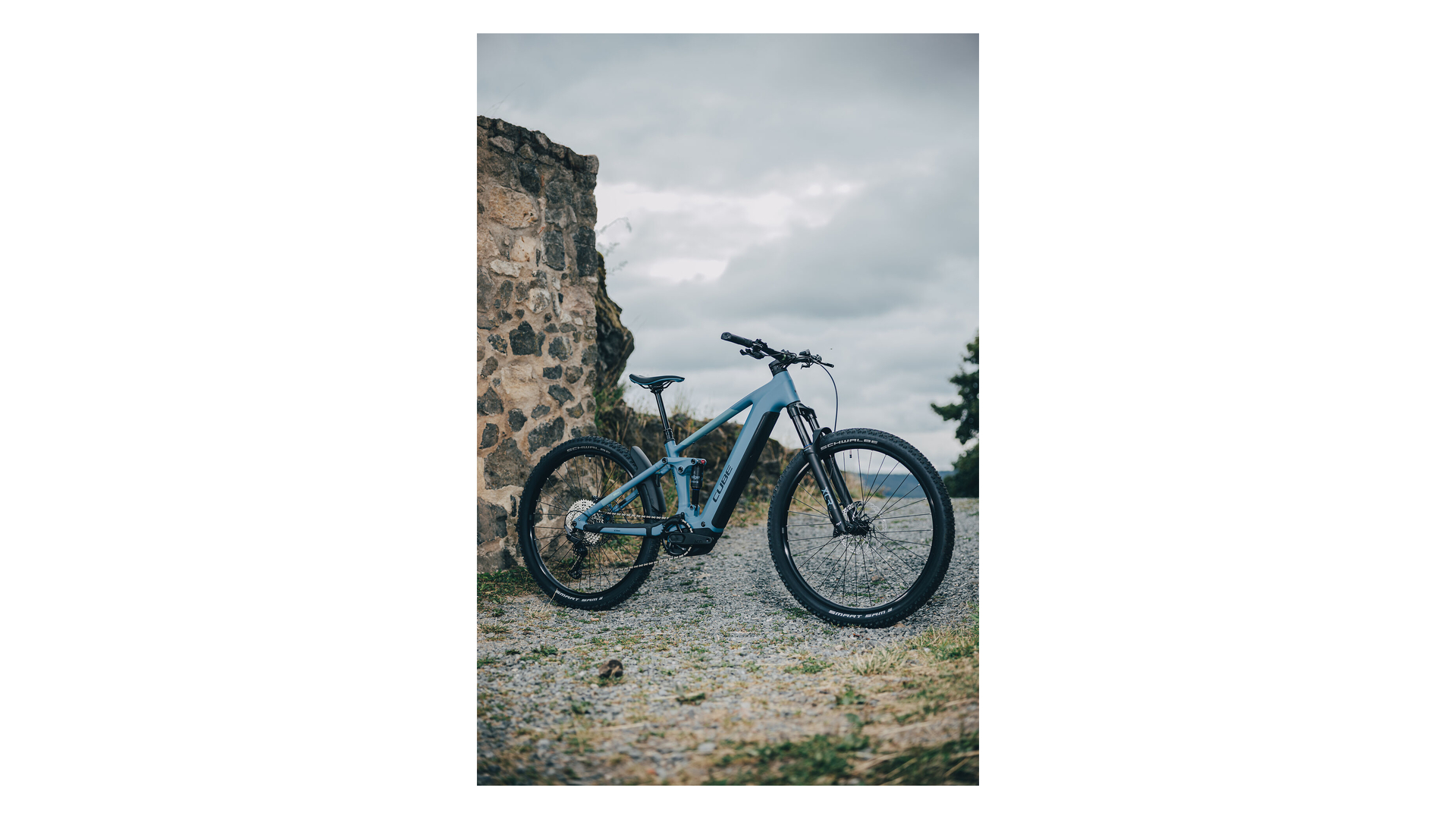

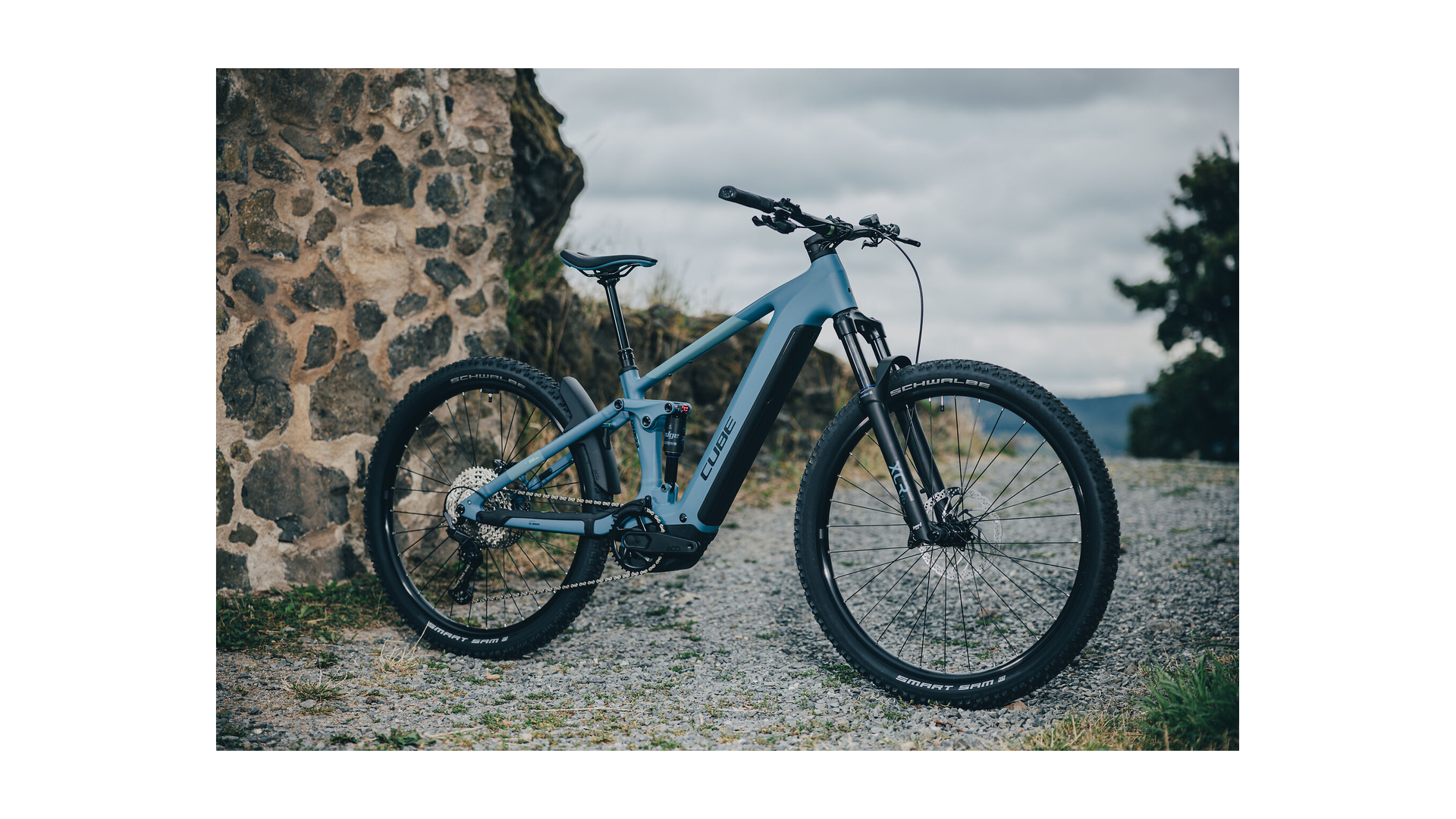

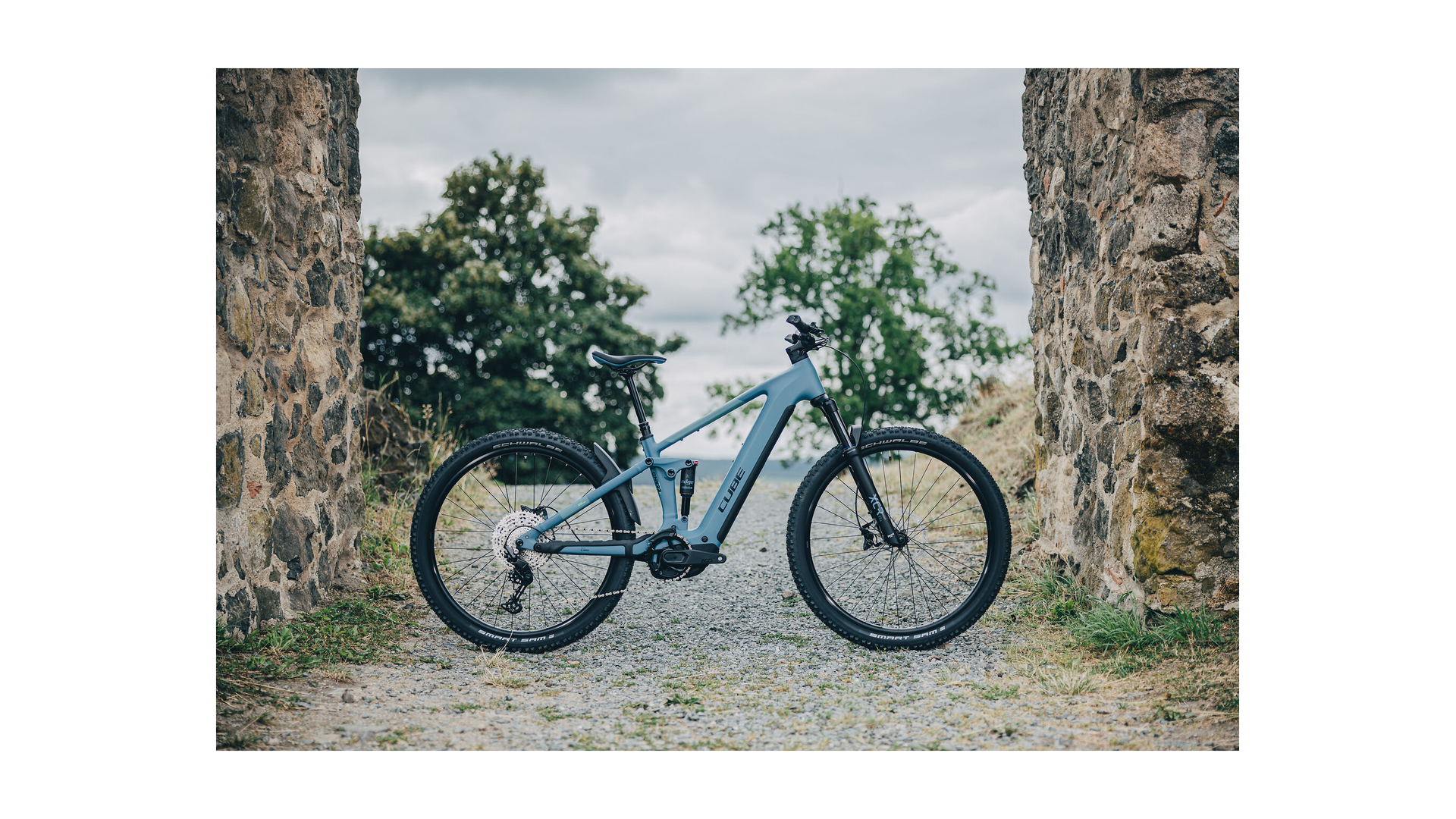

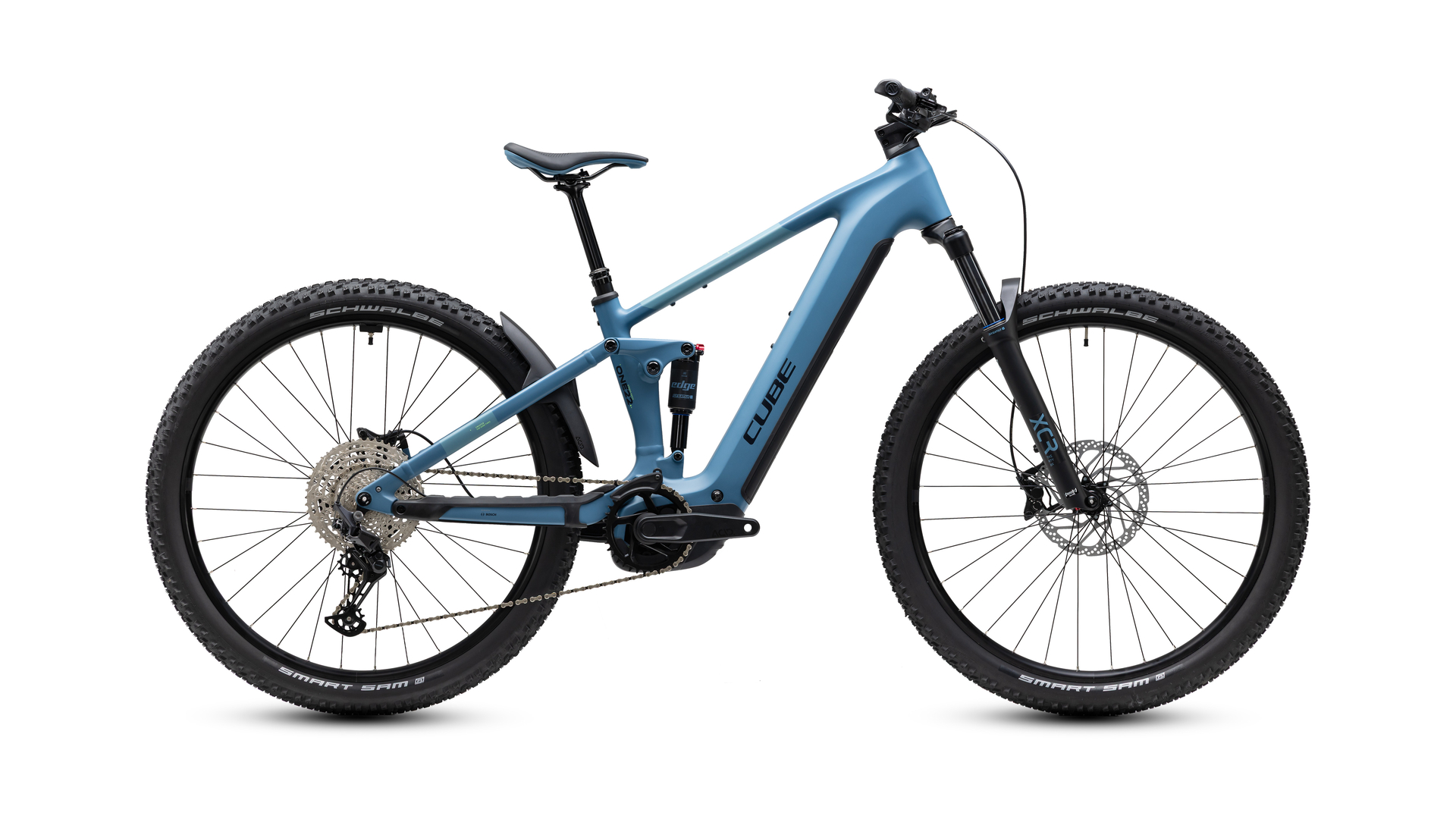

CUBE STEREO HYBRID ONE22 PRO 800 BLUESAPPHIRE/BLUE M |
Colour
|
BLUESAPPHIRE/BLUE |
Hscode
|
8711601000 |
Brand
|
CUBE |
Description frame
|

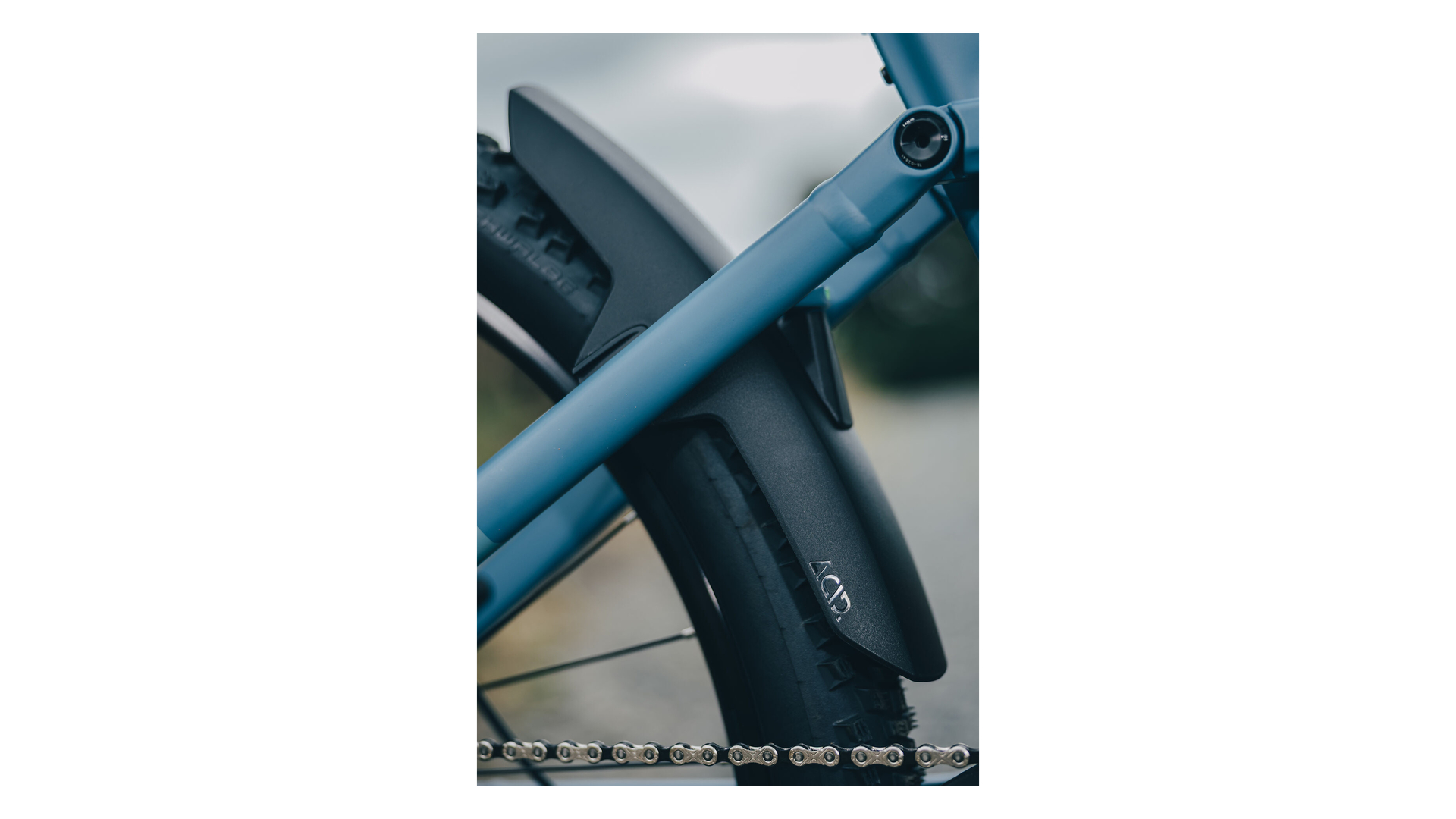

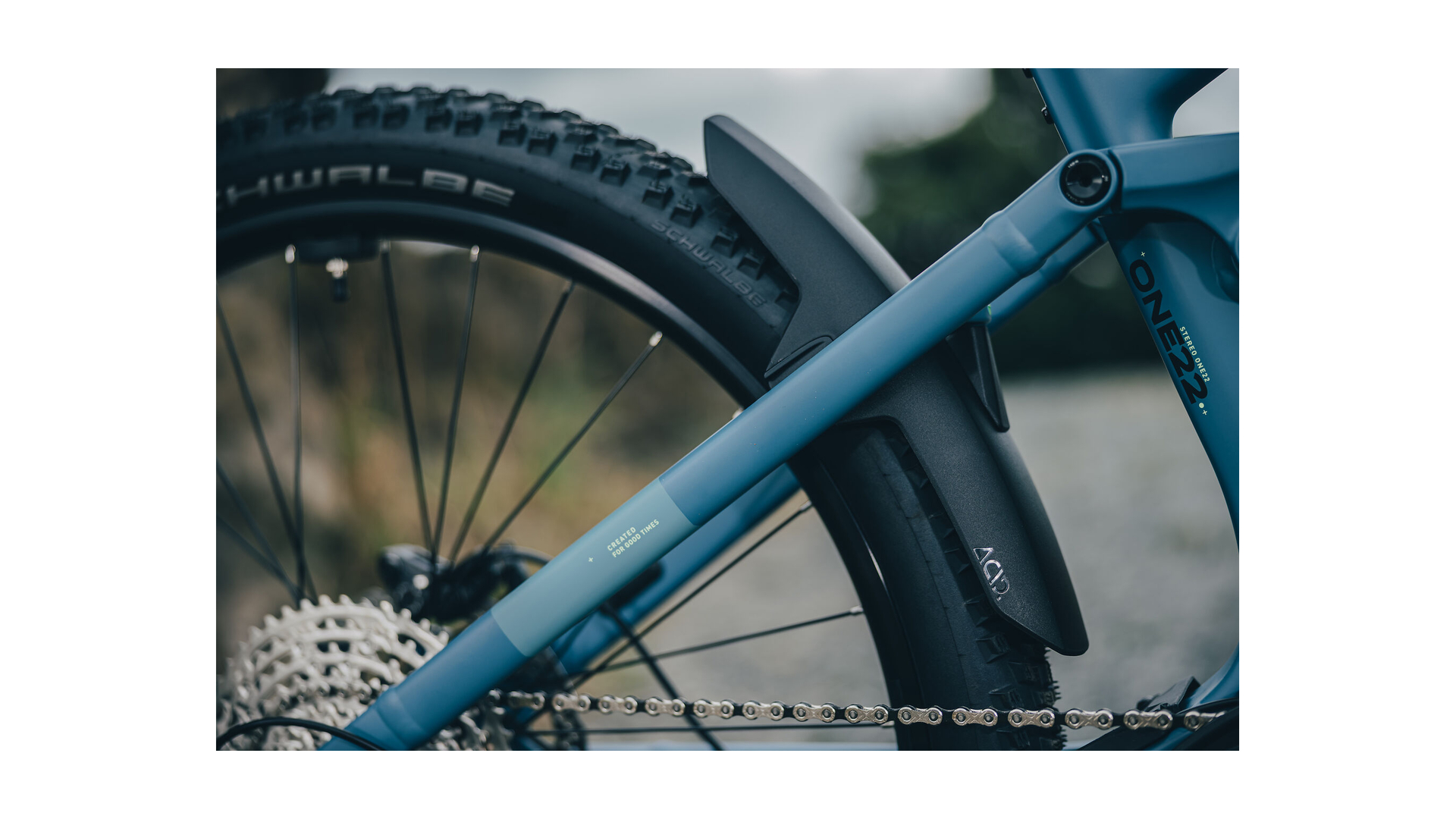

With added Bosch power and proven CUBE suspension kinematics, our trail explorer is a bike for all reasons. Suspension design that's stood the test of time is designed to work with a 120mm fork – including a mudguard mount – for the best in comfort and co |
Frame
|

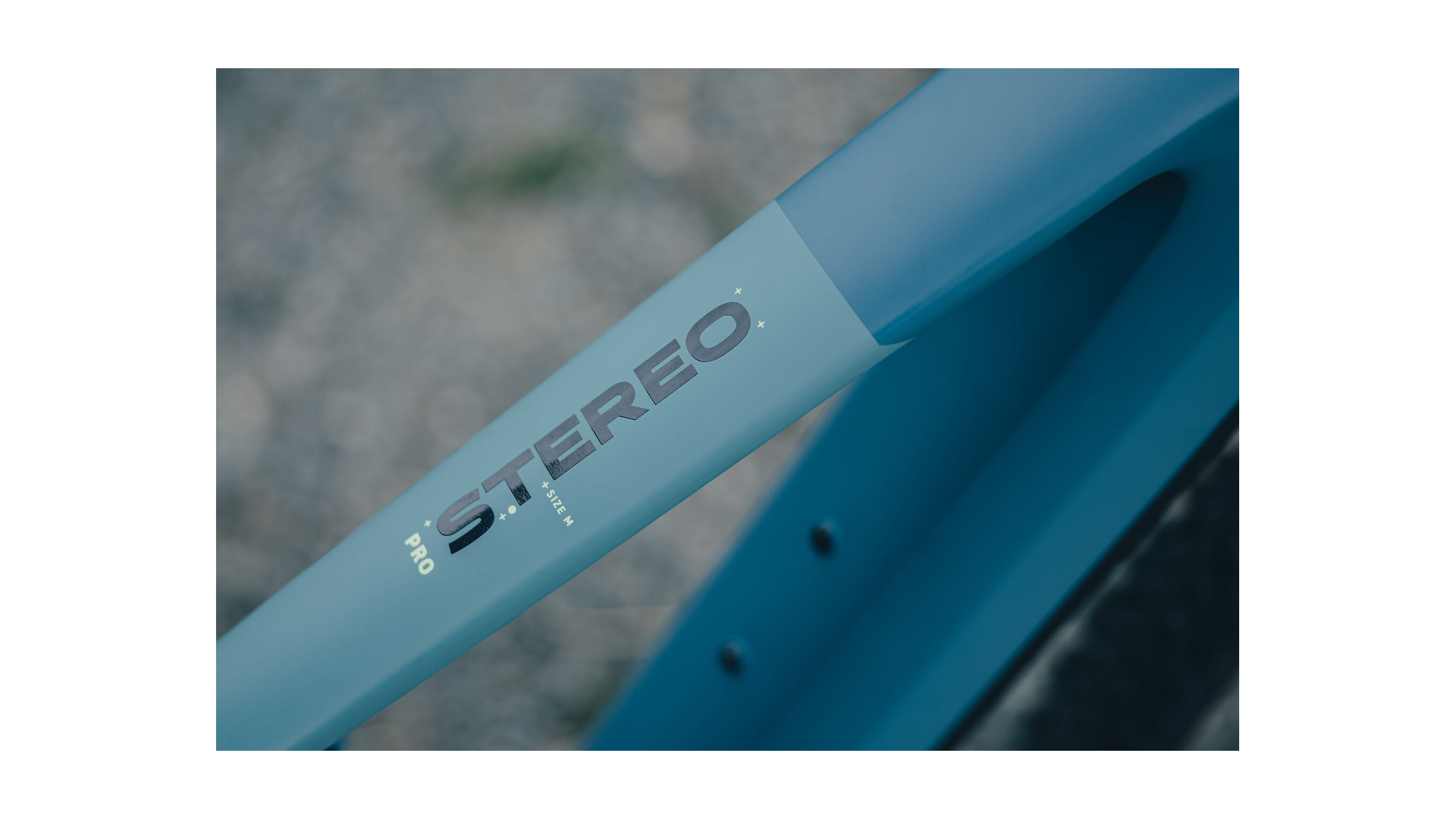

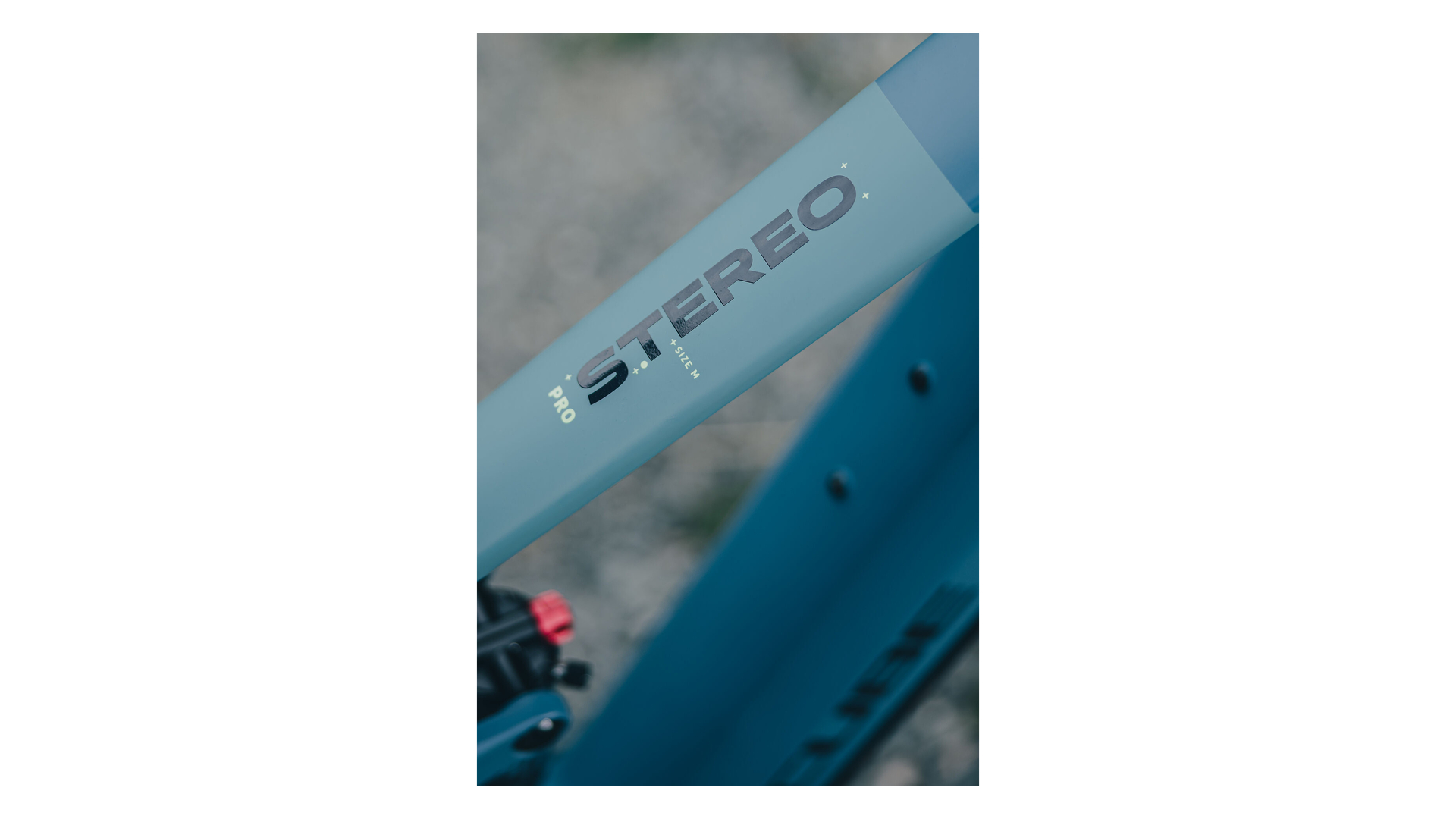

Aluminum Superlite, Gravity Casting Technology, Efficient Comfort Control, FSP 4-Link, Agile Comfort Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing, Kickstand/Fender/Carrier Mounting Points, Integrated Seatclamp |
Size
|
M |
Size range
|
Size Split: 27.5: S // 29: M, L, XL |

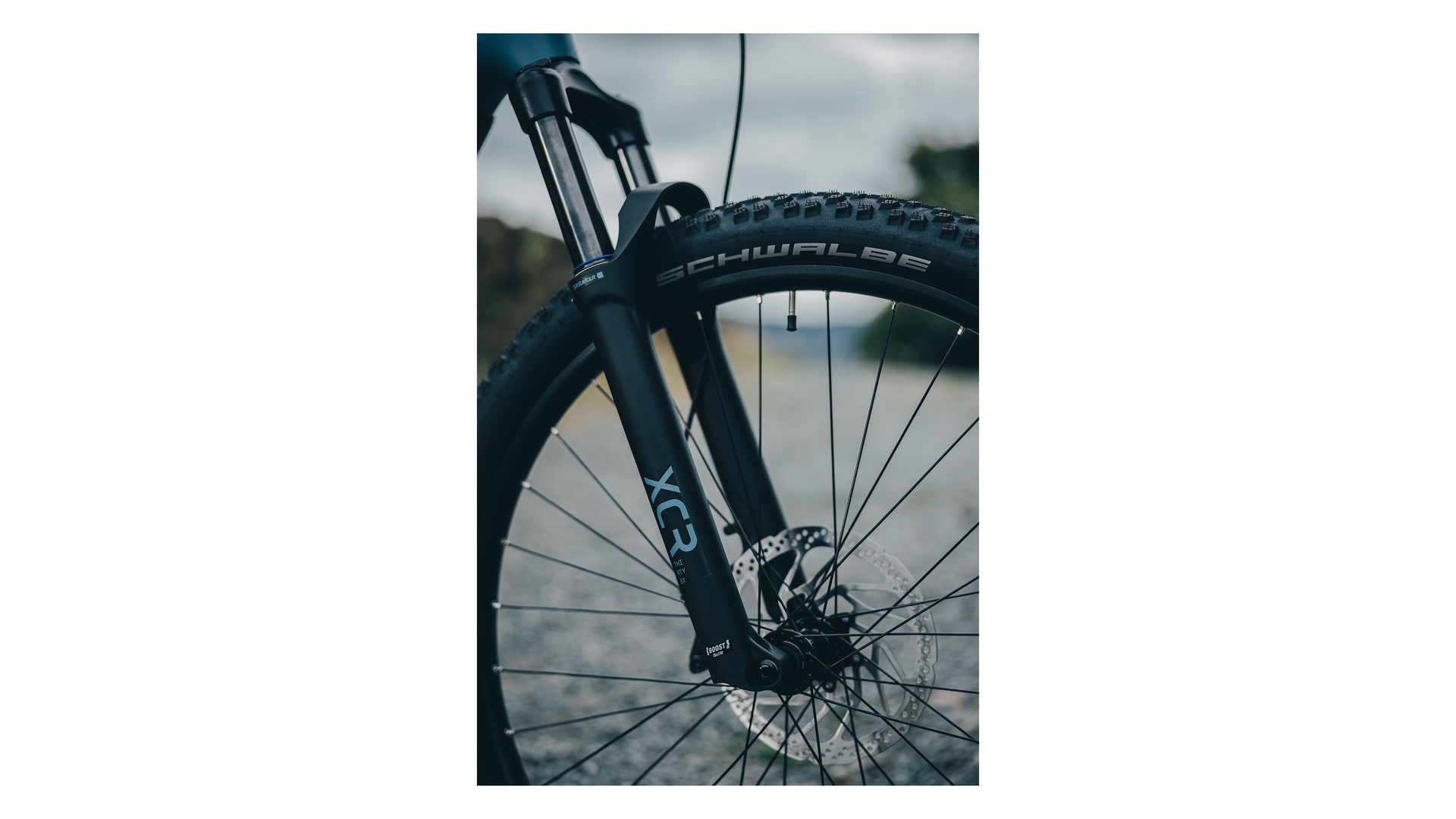

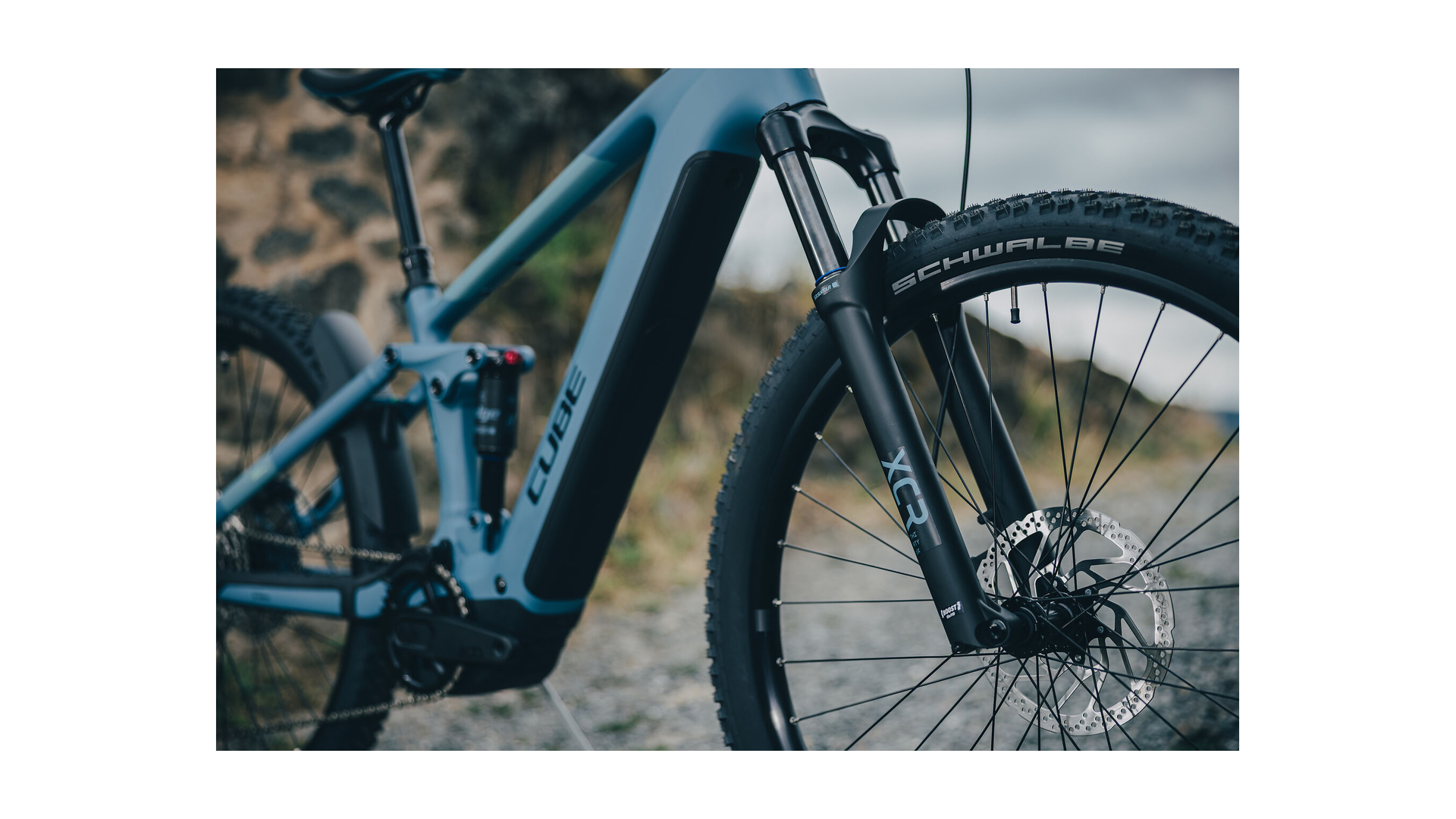

Fork
|
Suntour XCR36X 2CR Air, Tapered, 15x110mm, 120mm |

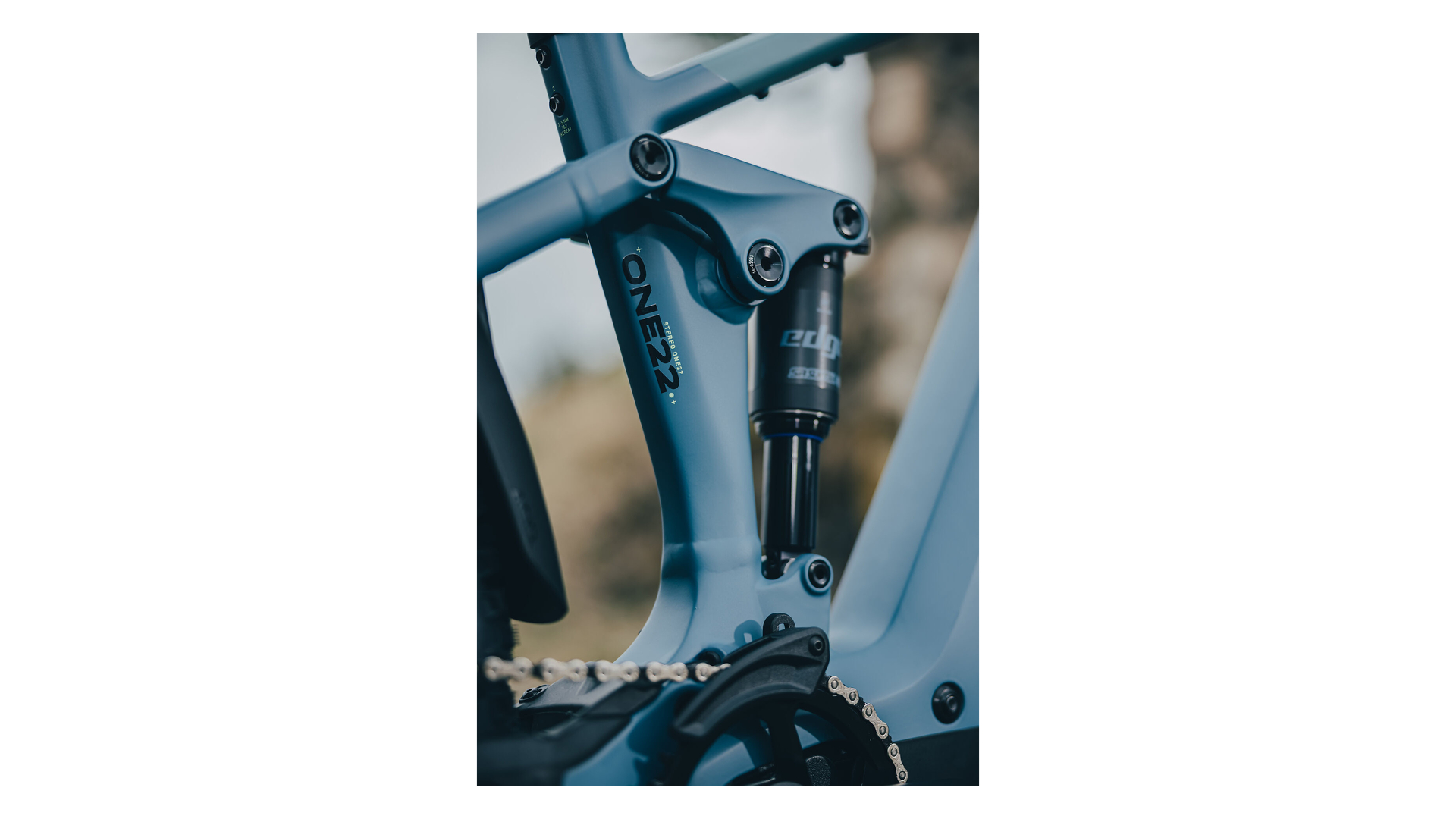

Frame shock
|
SR Suntour EdgeX R 185x52.5mm, Rebound Adjust, Trunnion Mount |
Shock hardware
|
Top: 54mm Trunnion Mount, Bottom: 22.2x8mm |
Headset
|
ACROS AZF-1034, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), X-Connect Interface |
Stem
|
CUBE Performance Stem E-MTB 35, FPI-Link |
Handlebar
|
CUBE Rise Trail Bar 35 |
Grips
|
ACID Hybrid Perform |
Rear derailleur
|
Shimano Deore RD-M6200-SGS, ShadowPlus, 12-Speed |
Chain guide
|
Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate |
Shifters
|
Shimano Deore SL-M6210-IR, Direct Attach, Single Click |
Brakes
|
Shimano BR-MT420, Hydr. Disc Brake (203/203) |
Crankset
|
ACID MTB Hybrid Pro, 38T |
Cassette
|
Shimano Deore CS-M6200, 10-51T |
Chain
|
KMC e12 |
Wheelset
|
ACID SLX 30, 32/32 Spokes, 15x110mm/12x148mm, Tubeless Ready |
Tires
|
Schwalbe Smart Sam, Active, 2.6 |
Pedals
|
ACID PP Rookie large |

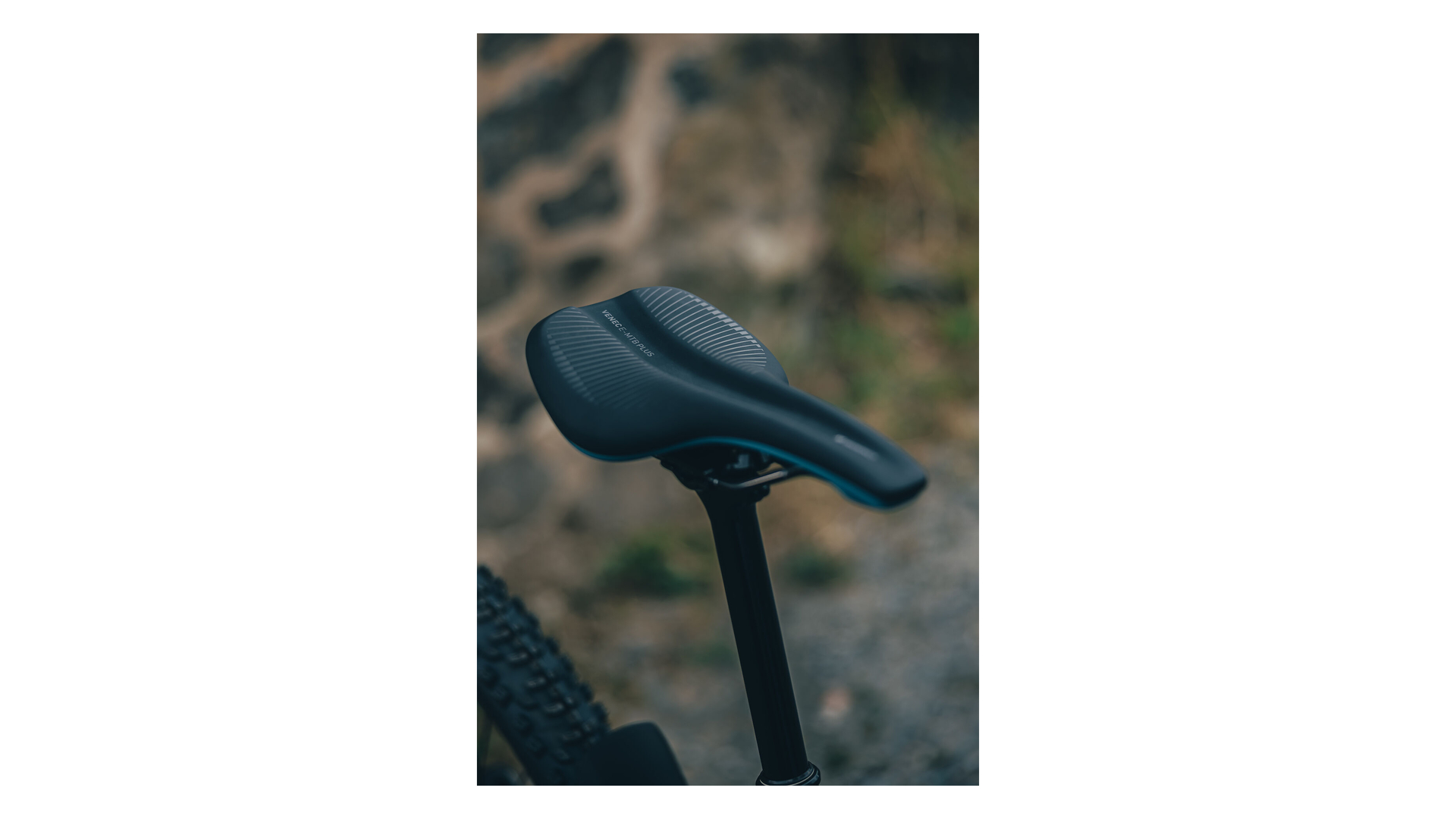

Saddle
|

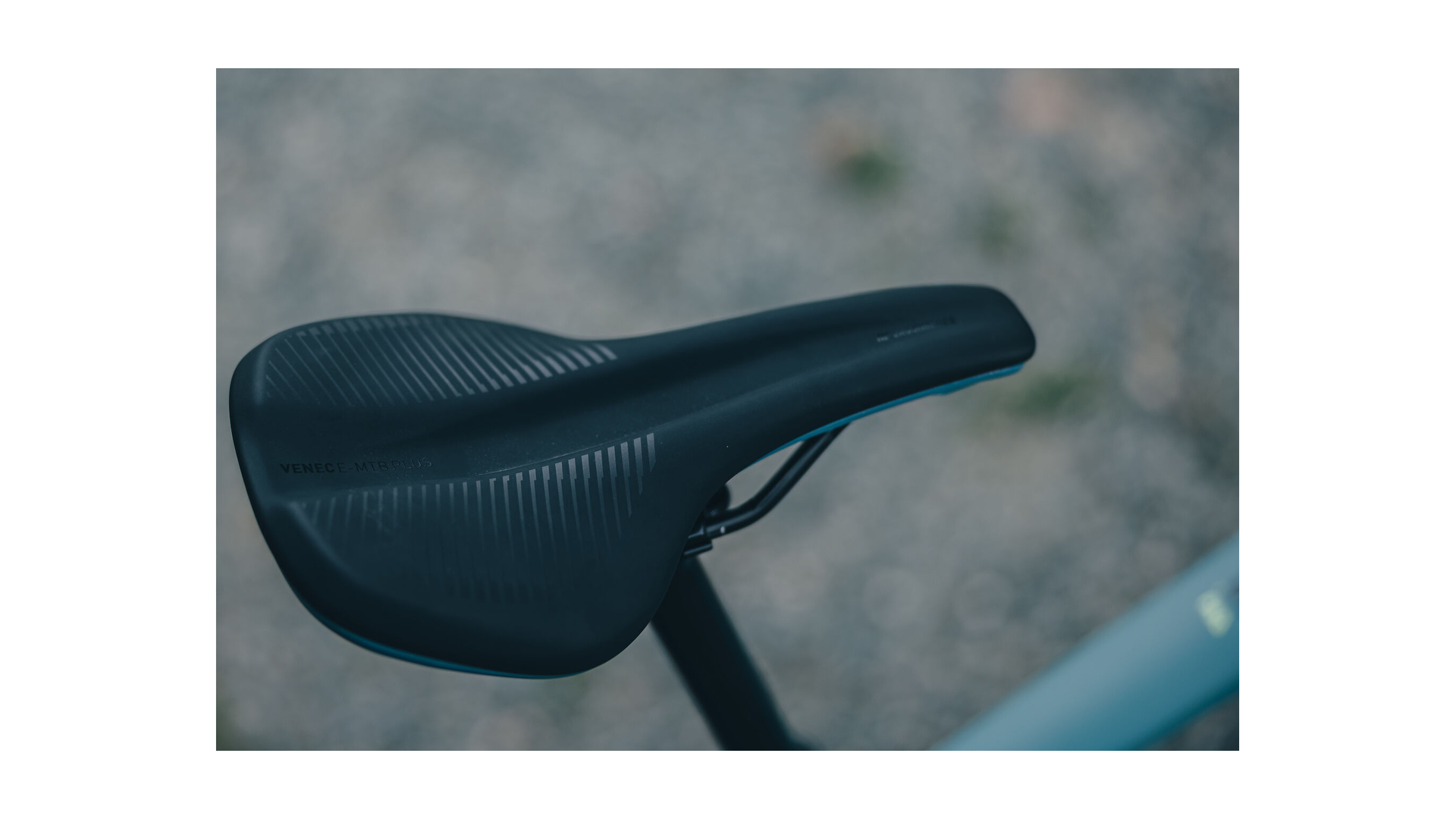

ACID Venec EMTB Plus 145 |
Seatpost
|
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm |

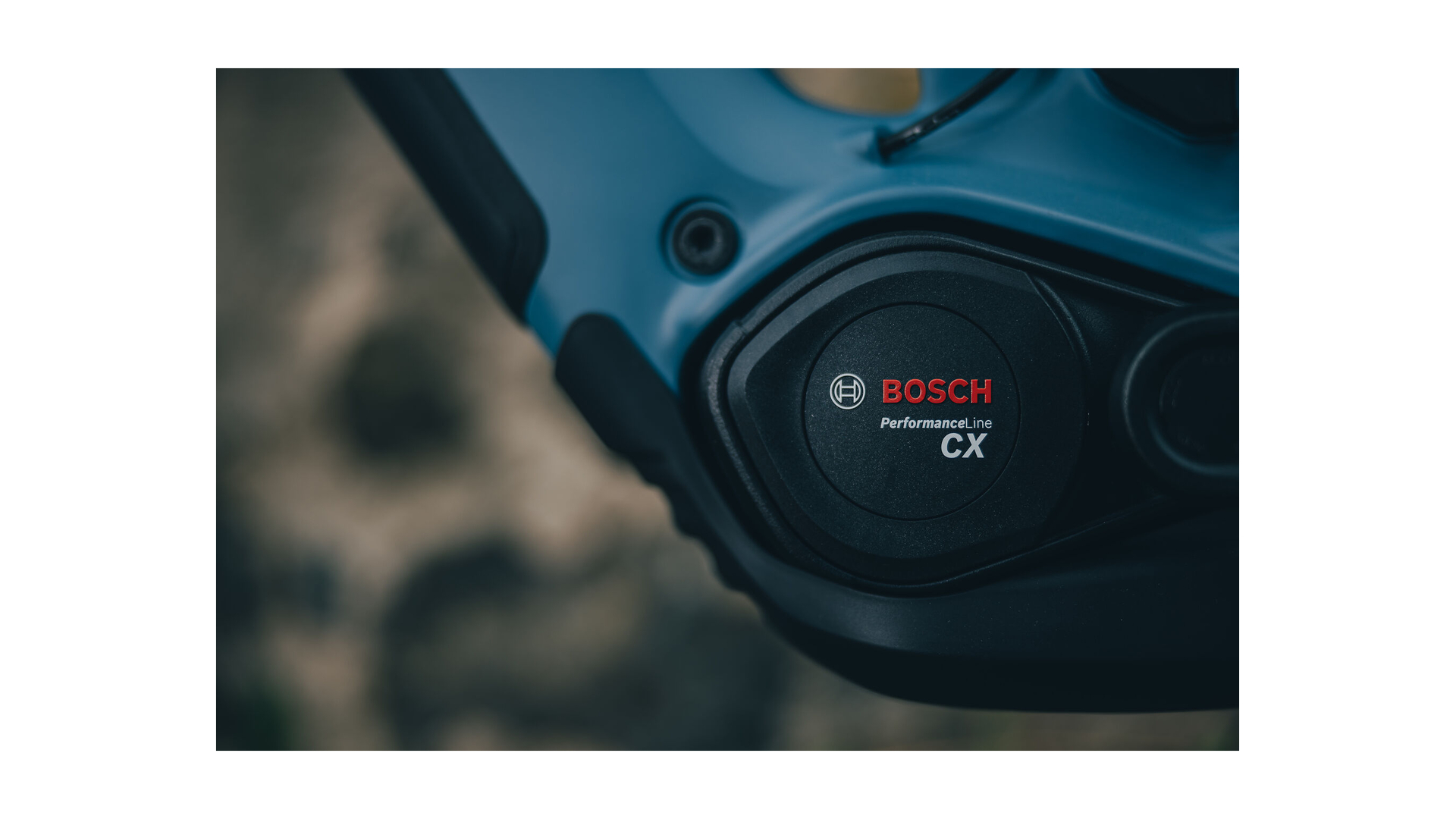

Engine
|

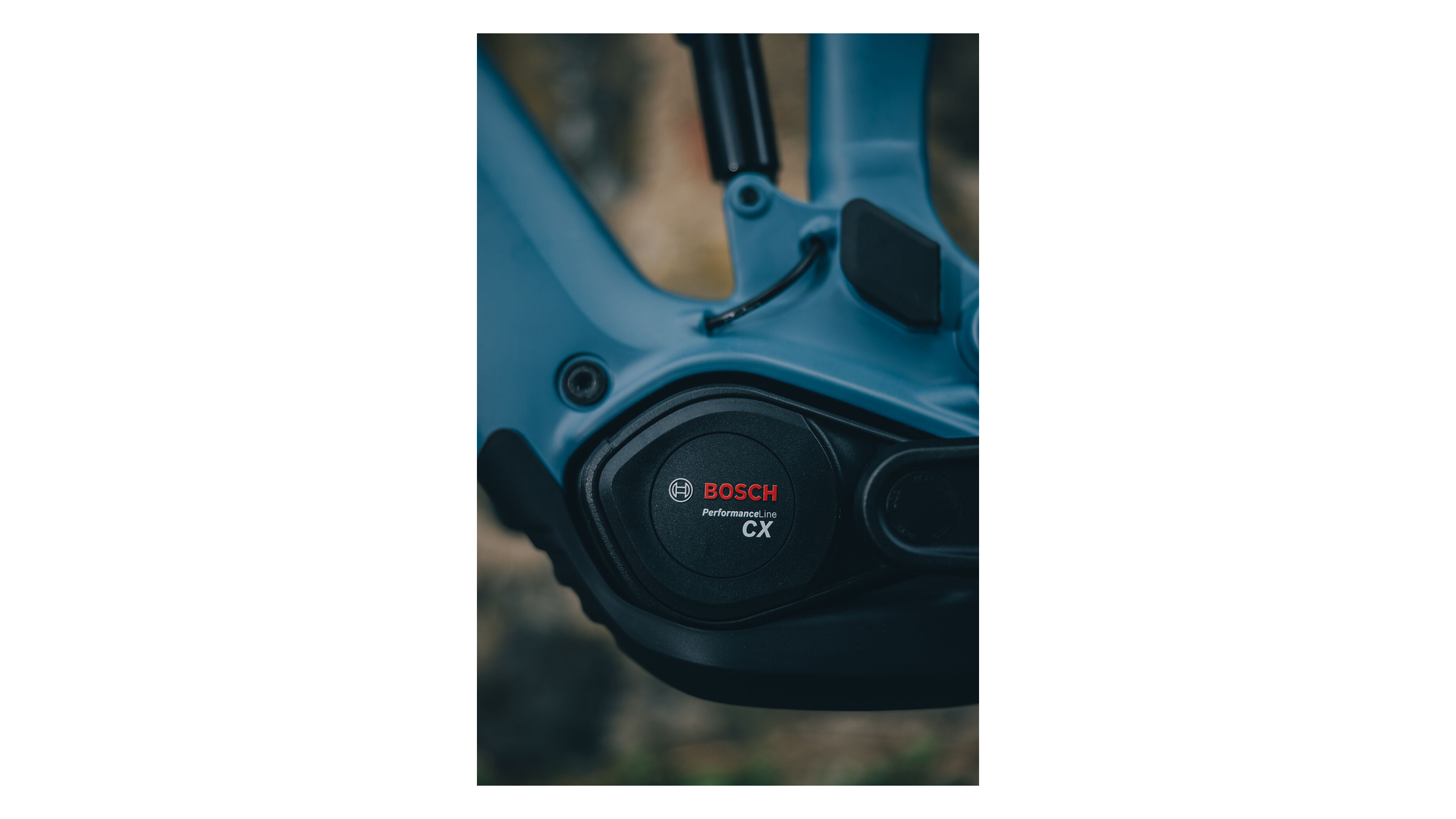

Bosch Drive Unit Performance Line CX max. 120Nm (BDU38) |
Battery
|
Bosch PowerTube 800 |
Charger
|
Bosch 2A |
Remote
|
Bosch Purion 200 with Integrated Display |
Net weight kg
|
26.74 |
