Scancode
|
103510-72- |
Brand
|
CUBE |
Product description
|

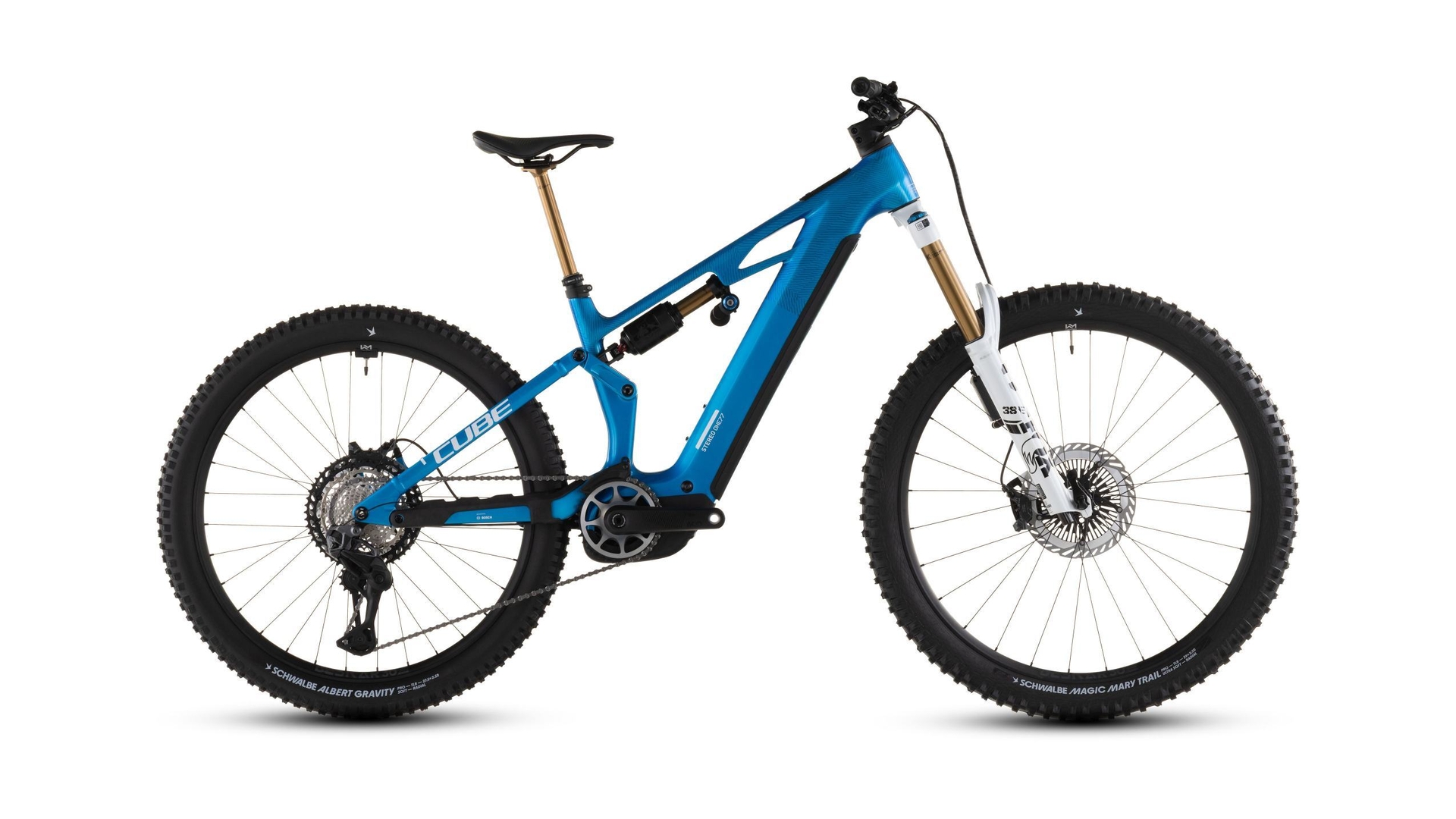

CUBE STEREO HYBRID ONE77 HPC AT 800 ACTIONTEAM L |
Size range
|
S, M, L, XL |
Wheelsize
|
29 |
Color
|
actionteam |
Description frame
|
The Stereo Hybrid ONE77 HPC frame – with 170mm travel front and rear and a mullet wheel setup with 29in front and 27.5in rear – is all you need for big days out on big mountain trails. But, as with all CUBE designs, the devil is in the detail. So, for exa |
Frame
|
C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing |
Fork
|
Fox 38 Float Factory GRIPX2, Tapered, 15x110mm, E-Bike Optimized, 170mm |
Shock
|
Fox Float X2 Factory, 230x65mm, Adjustable HSC/LSC/HSR/LSR w/ 2-Pos. Lever |
Shock hardware
|
Front: 30x8mm, Rear: DU-Bushing 12.7mm |
Headset
|
ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface |
Stem
|
CUBE Performance Stem E-MTB 35, FPI-Link |
Handlebar
|
Race Face ERA 35 |
Grips
|
ACID Disrupt, Soft Compound |
Rear derailleur
|
Shimano XT Di2 RD-M8260-SGS, 12-Speed, Electronic Shifting System |
Chain guide
|
Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate |
Shifters
|
Shimano XT Di2 SW-M8250-IR, Direct Attach |
Brakes
|
Shimano XT BR-M8220, Hydr. Disc Brake w/ Front ABS (203/203) |
Crankset
|
ACID MTB Hybrid Carbon, 36T |
Crankset chainring sizes
|
36T |
Cassette
|
Shimano XT CS-M8100, 10-51T |
Number of gears
|
12 |
Chain
|
Shimano XT CN-M8100 |
Wheelset
|
Newmen Beskar 30 base/strong, 28/32 Spokes, 15x110mm/12x148mm, Tubeless Ready |
Front tire
|
Schwalbe Magic Mary Trail Pro, Addix Ultrasoft, Kevlar, 2.5 |
Rear tire
|
Schwalbe Albert Gravity Pro, Addix Soft, Kevlar, 2.5 |
Pedals
|
ACID PP MTB |
Saddle
|
ACID Venec EMTB Trail 140 |
Seatpost
|
Fox Transfer Factory 31.6mm, Kashima Coated |
Seat post dropper yesno
|
YES |
Seatpost clamp
|
CUBE Semi-Integrated |
Engine
|
Bosch Drive Unit Performance Line CX max. 100Nm (BDU38) |
Battery
|
Bosch PowerTube 800 |
Charger
|
Bosch 4A |
Remote
|
Bosch Mini Remote |
Display
|
Bosch Kiox 400C |
Net weight kg
|
24.8 |
Coo
|
DE |
