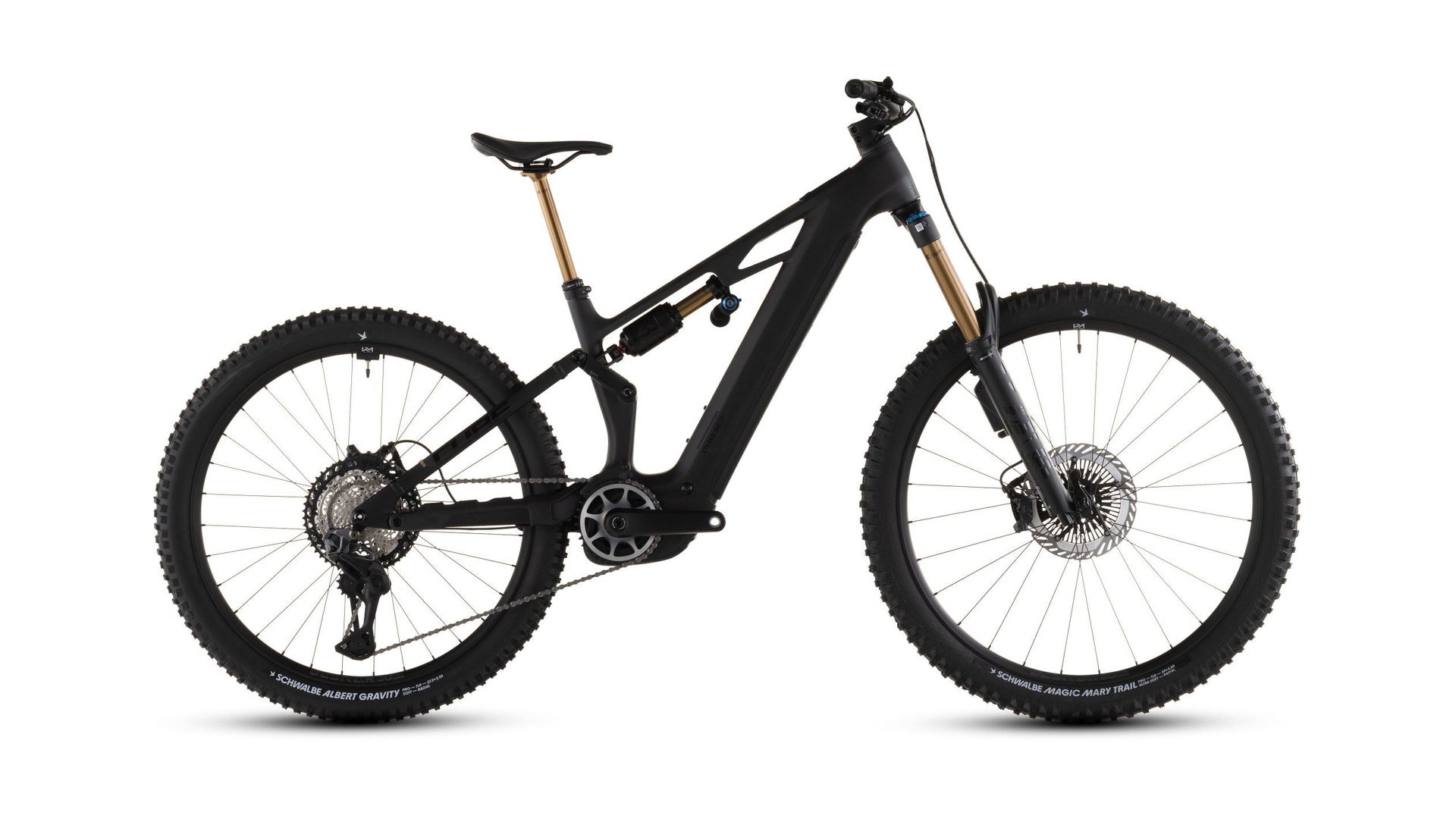

    CUBE STEREO HYBRID ONE77 HPC AT 800 CARBON/GOLDCarbon / Gold

    CUBE STEREO HYBRID ONE77 HPC AT 800 CARBON/GOLD
    Images shown above are indicative only.
    Components and graphical details may differ from the actual model.

    CUBE STEREO HYBRID ONE77 HPC AT 800 CARBON/GOLDCarbon / Gold

    The Stereo Hybrid ONE77 HPC AT is built with big mountains in mind. To that end, we fitted Fox's Float 38 Factory fork a…

    Select options to see stock info
    £6,499.00

    Options

    FREE Delivery

    On full-price bikes

    FREE click & collect

    On all orders

    FREE bike assembly

    On all Click & Collect orders

    All major cards accepted

    No card processing fees

    Cycle to Work available

    Contact us for details

    Minimum 12 month warranty

    On all products

    • The Stereo Hybrid ONE77 HPC AT is built with big mountains in mind. To that end, we fitted Fox's Float 38 Factory fork and Float X2 Factory shock – because when you're making full use of 170mm of travel, you need to know you're in good hands. Shimano's XT Di2 1x12 gears select with uncanny electronic precision, getting your power to the trail with help from Bosch's CX drive, the 800Wh PowerTube battery, a Kiox 400C top tube-mounted display and an ACID carbon crank. We added a remote dropper seatpost for extra confidence and manoeuvrability on tough trails, while Shimano XT hydraulic disc brakes with ABS Pro ensure you can safely keep your speed in check. And Newmen Beskar 30 wheels – in mullet configuration – with Schwalbe 2.5in Magic Mary and Albert tyres – keep you rolling, whatever obstacles lie in your path.<br><br><strong>Frame description</strong><br />The Stereo Hybrid ONE77 HPC frame – with 170mm travel front and rear and a mullet wheel setup with 29in front and 27.5in rear – is all you need for big days out on big mountain trails. But, as with all CUBE designs, the devil is in the detail. So, for example, we added Integrated Cable Routing for super-clean looks, and then threw in an angle-adjustable headset so that you can tweak the handling to your taste. The 800Wh PowerTube battery sits unobtrusively in the carbon down tube, just above the Bosch CX drive. A UDH dropout on the aluminium rear triangle is tough and future-proof, and we also added a Direct Mount chain guide to keep you driving forwards even when the going gets rough.

    • Scancode
      103500-72-
      Brand
      CUBE
      Product description
      CUBE STEREO HYBRID ONE77 HPC AT 800 CARBON/GOLD L
      Size range
      S, M, L, XL
      Wheelsize
      29
      Color
      carbon´n´gold
      Description frame
      The Stereo Hybrid ONE77 HPC frame – with 170mm travel front and rear and a mullet wheel setup with 29in front and 27.5in rear – is all you need for big days out on big mountain trails. But, as with all CUBE designs, the devil is in the detail. So, for exa
      Frame
      C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing
      Fork
      Fox 38 Float Factory GRIPX2, Tapered, 15x110mm, E-Bike Optimized, 170mm
      Shock
      Fox Float X2 Factory, 230x65mm, Adjustable HSC/LSC/HSR/LSR w/ 2-Pos. Lever
      Shock hardware
      Front: 30x8mm, Rear: DU-Bushing 12.7mm
      Headset
      ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface
      Stem
      CUBE Performance Stem E-MTB 35, FPI-Link
      Handlebar
      Race Face ERA 35
      Grips
      ACID Disrupt, Soft Compound
      Rear derailleur
      Shimano XT Di2 RD-M8260-SGS, 12-Speed, Electronic Shifting System
      Chain guide
      Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
      Shifters
      Shimano XT Di2 SW-M8250-IR, Direct Attach
      Brakes
      Shimano XT BR-M8220, Hydr. Disc Brake w/ Front ABS (203/203)
      Crankset
      ACID MTB Hybrid Carbon, 36T
      Crankset chainring sizes
      36T
      Cassette
      Shimano XT CS-M8100, 10-51T
      Number of gears
      12
      Chain
      Shimano XT CN-M8100
      Wheelset
      Newmen Beskar 30 base/strong, 28/32 Spokes, 15x110mm/12x148mm, Tubeless Ready
      Front tire
      Schwalbe Magic Mary Trail Pro, Addix Ultrasoft, Kevlar, 2.5
      Rear tire
      Schwalbe Albert Gravity Pro, Addix Soft, Kevlar, 2.5
      Pedals
      ACID PP MTB
      Saddle
      ACID Venec EMTB Trail 140
      Seatpost
      Fox Transfer Factory 31.6mm, Kashima Coated
      Seat post dropper yesno
      YES
      Seatpost clamp
      CUBE Semi-Integrated
      Engine
      Bosch Drive Unit Performance Line CX max. 100Nm (BDU38)
      Battery
      Bosch PowerTube 800
      Charger
      Bosch 4A
      Remote
      Bosch Mini Remote
      Display
      Bosch Kiox 400C
      Net weight kg
      24.7
      Coo
      DE
